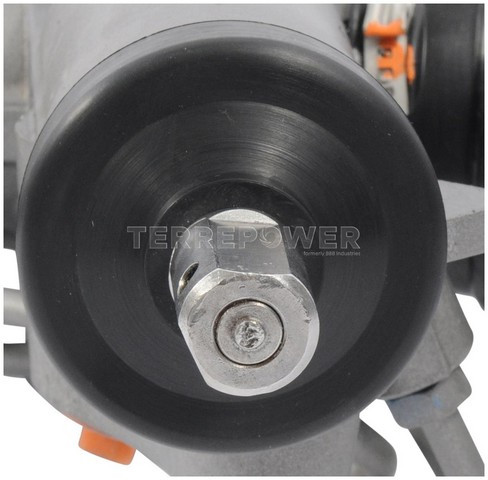

TERREPOWER formerly BBB Industries 101-0263 rack and pinion for the 2011-2014 Ford F-150 is a remanufactured hydraulic power steering unit that turns steering wheel input into side-to-side wheel movement.
- Designed for dependability and reliability throughout the service life of the vehicle
- 3.25 turns lock to lock
- Two mounting holes, 285.75 mm (11.25 in) apart
Heavy steering, a whine when you turn, or fluid showing at the housing can mean the rack and pinion is worn, though a weak power steering pump or a leaking hose can also be behind them, so track down the cause first.
As a direct-fit replacement, this rack and pinion assembly suits the 2011-2014 Ford F-150, and each truck takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- End-to-end length: 55.75 in (1416.05 mm)
- Input shaft length: 1.438 in (36.513 mm)
- Steering input shaft diameter: 0.729 in (18.517 mm)
- Pressure port thread size: 12mm
- Return port thread size: 10mm
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Country of origin: Mexico
In the box
Inner tie rods and bushings are included. Outer tie rods are not included.
Interchange: BL3Z-3504-D · CL3Z-3504-B
Frequently Asked Questions
Does the TERREPOWER formerly BBB Industries 101-0263 fit the 2011-2014 Ford F-150?
Yes. TERREPOWER formerly BBB Industries 101-0263 is listed for the 2011-2014 Ford F-150, and the truck takes one.
Does this rack and pinion come with tie rods?
It includes the inner tie rods and the bushings. The outer tie rods are not included, so you will need them separately.
What thread sizes are the power steering ports on this rack and pinion?
On TERREPOWER formerly BBB Industries 101-0263, the pressure port thread is 12mm and the return port thread is 10mm.
Does this rack and pinion replace the BL3Z-3504-D and CL3Z-3504-B numbers?
Yes. BL3Z-3504-D and CL3Z-3504-B are listed as interchange numbers for this rack and pinion.
How long is the input shaft on this hydraulic rack and pinion, and what is its diameter?
The input shaft is 1.438 in (36.513 mm) long and 0.729 in (18.517 mm) in diameter.
