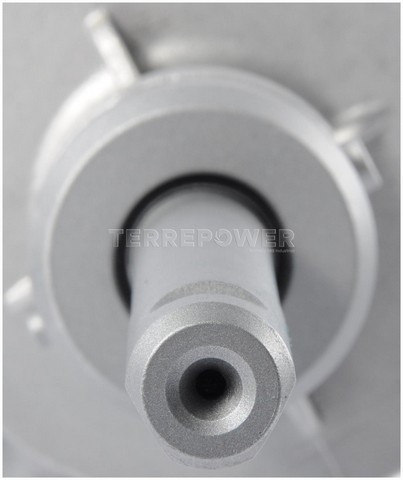

Steer straight and keep effort light with the TERREPOWER (formerly BBB Industries) Remanufactured Power Steering Rack and Pinion 201-0151E — a direct-fit 2012 Ford Focus rack and pinion that also drops into the 2013-2016 Ford C-MAX [All] and 2012-2018 Ford Focus [All]. Each unit is remanufactured to deliver dependable, reliable steering throughout the service life of the vehicle, converting the driver's input at the steering wheel into the side-to-side motion that turns the wheels.
Electric power steering: This is an Electric-type rack; the electric motor and control module are included.
Inner tie rods included: Yes — the outer tie rods are not included, so transfer or replace them per the service procedure.
Precise ratio: 2.25 total turns lock to lock.
Three mounting holes for secure installation.
Worn or leaking steering that shows excessive play, uneven effort, or a knocking feel through the wheel are signs the original rack may need replacing; if a failed rack and pinion is the cause, this reman unit replaces it. Confirm your application in the "Vehicles it fits" section before ordering. Country of origin: Mexico.
Interchange: CV6Z-3504-C · CV6Z-3504-CE · CV6Z-3504-GE · CV6Z-3504-JE · CV6Z-3504-JH · CV6Z-3504-ZJH
CV6Z3504C · CV6Z3504CE · CV6Z3504GE · CV6Z3504JE · CV6Z3504JH · CV6Z3504ZJH
This part cross-references / interchanges with the following part numbers:
BV6Z-3504-DE, BV6Z-3504-FE, BV6Z-3504-GE, CV6Z-3504-C, CV6Z-3504-CE, CV6Z-3504-GE, CV6Z-3504-JE, CV6Z-3504-JH, CV6Z-3504-S, CV6Z-3504-V, CV6Z-3504-ZE, CV6Z-3504-ZJH, CV6Z-3504-ZLH, HV6Z-3504-EQ, HV6Z-3504-FH
Frequently Asked Questions
Does this rack fit a 2012 Ford Focus?
Yes. It is a direct-fit remanufactured power steering rack and pinion for the 2012-2018 Ford Focus [All] and the 2013-2016 Ford C-MAX [All]. Confirm your vehicle in the "Vehicles it fits" section.
Is this an electric power steering rack?
Yes, it is an Electric-type rack and pinion. Both the electric motor and the control module are included with the unit.
Are the tie rods included?
The inner tie rods are included. The outer tie rods are not included, so transfer your existing ones or replace them as directed by the service procedure.
What is the turning ratio?
The rack is rated at 2.25 total turns lock to lock.
What are signs my steering rack may need replacing?
Excessive play, uneven steering effort, or a knocking feel through the wheel can indicate a worn rack. Diagnose the cause first; if the rack is at fault, this reman unit replaces it.
