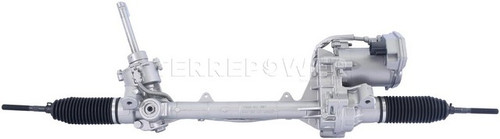

TERREPOWER 201-0157E rack and pinion for the 2013-2015 Ford Explorer turns steering wheel rotation into side-to-side tie rod movement. This remanufactured electric unit, also called a rack and pinion assembly, is designed for dependability and reliability.
- Motor and control module included with the rack
- Inner tie rods included; outer tie rods are not
- 2.75 turns lock to lock
- 2-pin and 3-pin electrical connectors
Quick facts
- Part: TERREPOWER 201-0157E rack and pinion
- Also called: rack and pinion assembly
- Fits: 2013-2015 Ford Explorer
- Condition: Remanufactured
Heavy or uneven steering effort, play in the wheel or a steering warning light can mean this rack is worn, though a worn outer tie rod end or an alignment problem can produce similar symptoms, so find the actual cause before replacing it.
Fits
This rack and pinion fits the 2013-2015 Ford Explorer.
Specifications
Fit and size
- Quantity per vehicle: 1
- End-to-end length: 54.63 in (1387.602 mm)
- Input shaft length: 2.38 in (60.452 mm)
- Input shaft diameter: 0.73 in (18.542 mm)
- Total turns lock to lock: 2.75
- Mounting holes: 2
Build and materials
- Type: Electric
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One rack and pinion with its motor, control module and inner tie rods. Outer tie rods are not included. This listing holds one unit, and the 2013-2015 Ford Explorer takes one.
Interchange: DB5Z-3504-AE · DB5Z-3504-KE · EB53-3D070-AF · EB53-3D080-AF · EB53-3D080-AG · EB53-3D080-AH · EB5Z-3504-A · EB5Z-3504-G · EB5Z-3504-H · EB5Z-3504-L · EB5Z-3504-LE
This part cross-references / interchanges with the following part numbers:
DB5Z-3504-AE, DB5Z-3504-KE, EB53-3D070-AF, EB53-3D080-AF, EB53-3D080-AG, EB53-3D080-AH, EB5Z-3504-A, EB5Z-3504-G, EB5Z-3504-H, EB5Z-3504-L, EB5Z-3504-LE
Frequently Asked Questions
Is the TERREPOWER 201-0157E a 2013 Ford Explorer rack and pinion?
Yes. TERREPOWER 201-0157E is a direct-fit replacement for the 2013-2015 Ford Explorer, which takes one rack and pinion.
Does this rack and pinion come with the motor and tie rods?
It includes the motor, the control module and the inner tie rods. The outer tie rods are not included.
How long is this rack and pinion, and how many turns does it take lock to lock?
TERREPOWER 201-0157E measures 54.63 in (1387.602 mm) end to end and turns 2.75 times lock to lock. Its input shaft is 0.73 in (18.542 mm) in diameter.
Steering feels heavy and a warning light is on; could the rack be the cause?
It can be if the rack is worn. Looseness in the wheel is another possible sign, and a shop can test the electric steering system to confirm.
What connectors does this electric rack and pinion have?
It has a 2-pin connector A and a 3-pin connector B. The motor and control module come already included with the rack.
