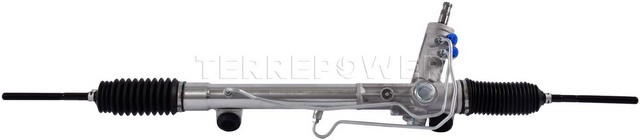

Translate steering-wheel input into wheel movement with hydraulic power assist using the TERREPOWER (formerly BBB Industries) Rack and Pinion, part number N101-0111. It is a new power steering rack built with dependability and reliability in mind. It is listed for many models from Ford, Lincoln and Mercury built, including the 1980-1993 Ford Mustang, the 1980-1988 Ford Thunderbird and the 1983-1986 Ford LTD (engine: All).
TERREPOWER describes this unit as a premium-quality new power steering rack and pinion. It comes with the inner tie rods included.
- Hydraulic power unit: The system type is hydraulic, with 2.50 turns lock to lock.
- Tie rods: Inner tie rods are included. Outer tie rods are not included, so transfer or replace them as directed by the vehicle service procedure.
- Port threads: The pressure port is 9/16x18 and the return port is 5/8x18.
- Dimensions: End-to-end length is 45.125 in (1146.175 mm). The two mounting holes are spaced 15.5 in (393.7 mm) apart. The input shaft is 0.75 in (19.05 mm) in diameter and 2 in (50.8 mm) long.
A rack and pinion may need replacing if it shows power steering fluid leaks at the rack, steering that feels heavy or inconsistent, or excess play at the wheel. Diagnose the cause before replacing, because other steering components can produce similar symptoms. The listed applications use one rack each. Country of origin: China.
See the Buyer's Guide tab to confirm your vehicle.
