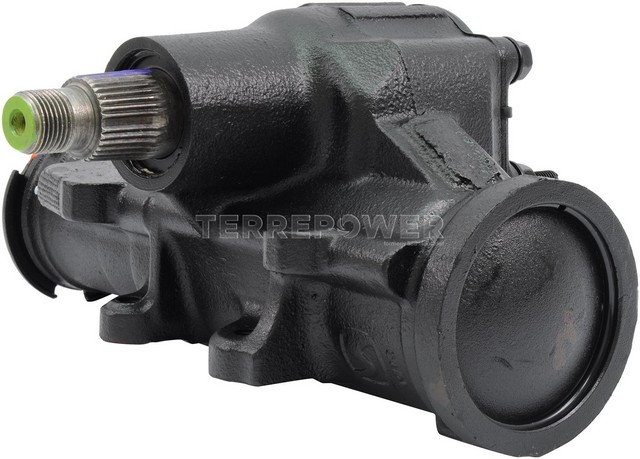

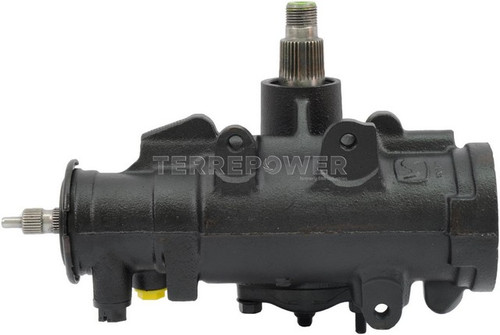

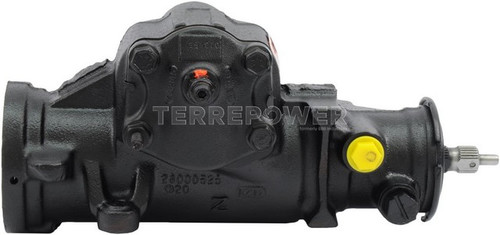

TERREPOWER 502-0122 steering gear for the 1996-1998 Jeep Grand Cherokee and other vehicles is a remanufactured power steering gear that turns steering wheel input into wheel movement. It is intended for dependable service over the life of the vehicle.
- Power steering gear with 3.375 total turns lock to lock
- Installation kit included
- Metric ports: M18X1.50 pressure and M16X1.50 return
- 32-spline output shaft and 26-spline input shaft
Quick facts
- Part: TERREPOWER 502-0122 steering gear
- Fits: 1996-1998 Jeep Grand Cherokee and other vehicles
- Condition: Remanufactured
Loose or heavy steering, fluid seepage around the housing or noise when turning can mean the steering gear is wearing out. Before you replace it, rule out worn tie rods, a leaking power steering hose or pump, and a slipping belt, since any of these can produce similar signs.
Fits
Besides the 1996-1998 Jeep Grand Cherokee, this steering gear fits the 1996-1998 Jeep Cherokee and the 1997 Jeep Wrangler, and each takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Total turns lock to lock: 3.375
- Pressure port (inlet) thread: M18X1.50
- Return port (outlet) thread: M16X1.50
- Mounting holes: 3
- Input shaft diameter: 18.29 mm (0.72 in), 26 splines
- Output shaft diameter: 31.75 mm (1.25 in), 32 splines
Build and materials
- Type: power
- Condition: remanufactured
- Installation kit: included
- Country of origin: Mexico
In the box
One remanufactured steering gear and an installation kit.
Frequently Asked Questions
Is this the steering gear for a 1997 Jeep Wrangler?
Yes. TERREPOWER 502-0122 is listed for the 1997 Jeep Wrangler, and that Jeep takes one.
Does the 1996-1998 Jeep Cherokee take this same steering gear?
Yes. The 1996-1998 Jeep Cherokee is on the fitment list for this steering gear, and each one takes a single gear.
Does the TERREPOWER 502-0122 come with an installation kit?
Yes. The listing is one remanufactured steering gear with an installation kit.
What are the port thread sizes on this steering gear?
The pressure port is M18X1.50 and the return port is M16X1.50. Total turns lock to lock is 3.375.
How can I tell a steering gear is wearing out?
Signs can include a loose or heavy steering feel, fluid seepage around the housing or noise while turning. A shop can test the steering system to find the cause.
