Rear Wheel Bearing and Hub Assembly for 1997-2008 Chevrolet Corvette & More - Timken 512153

$285.99

Timken Wheel Bearing and Hub Assembly 512153

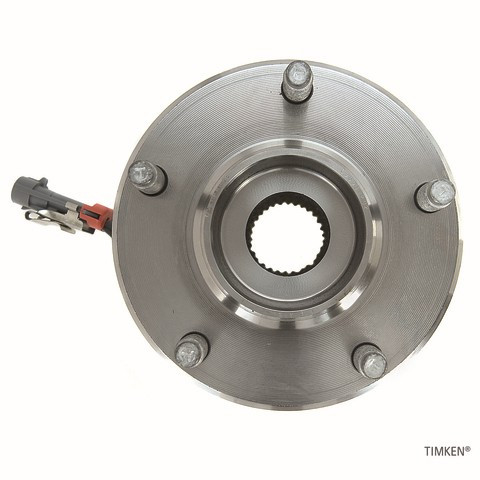

Timken Wheel Bearing and Hub Assembly 512153 - view 2

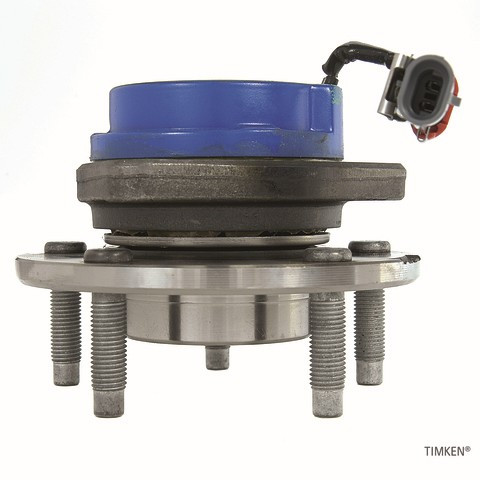

Timken Wheel Bearing and Hub Assembly 512153 - view 3

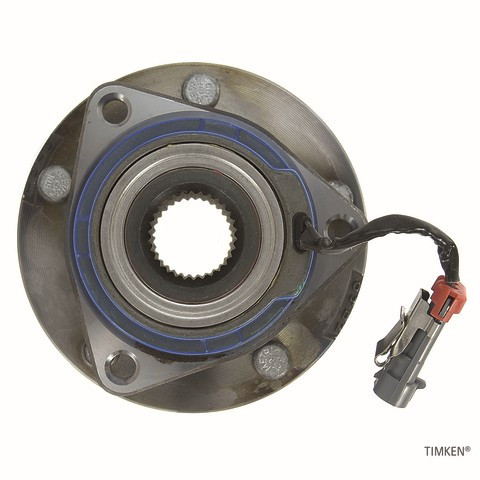

Timken Wheel Bearing and Hub Assembly 512153 - view 4

Part number: 512153

UPC: 053893895734

Condition: New

Weight: 8.70 LBS

Item Package Quantity: 1

$285.99

Current Stock: 21

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Timken Wheel Bearing and Hub Assembly P/N:512153

$285.99

Description

Timken 512153 rear wheel bearing and hub assembly for the 1997-2008 Chevrolet Corvette and other vehicles carries the wheel on its axle so it turns freely. It combines the bearing and the hub, with five wheel studs, in one hub unit.

Seals with a reinforced outer case, ribbed rubber inner diameter and a contamination exclusion system
Bearings with precision profiles, uniform internal geometry and enhanced surface finishes to increase load carrying capacity and extend bearing life
Low runout to reduce noise and vibration
ABS sensor 100% tested to monitor wheel speed for the anti-lock braking system

Quick facts

Part: Timken 512153 wheel bearing and hub assembly
Fits: 1997-2008 Chevrolet Corvette and other vehicles
Position: Rear
Condition: New

A humming or growling noise that changes with speed, or vibration at the wheel, can mean a hub bearing is wearing. Other parts can cause similar signs, so before replacing it, park the car and let it cool, then look for uneven tire wear or grease around the hub.

Fits

It fits the 1997-2008 Chevrolet Corvette and the 2004-2008 Cadillac XLR, with one assembly on each side of the rear axle. This listing is one assembly; the other side of that axle is normally done at the same time.

Specifications

Fit and size

Position: rear
Quantity per vehicle: 2
Bolt circle diameter: 120.65 mm (4.750 in), 5 wheel studs
Flange diameter: 145.50 mm (5.728 in)
Flange bolt holes: 3
Flange offset: 42.06 mm (1.656 in)
Hub pilot diameter: 91.42 mm (3.599 in)
Brake pilot diameter: 70.60 mm (2.780 in)
Wheel pilot diameter: 70.10 mm (2.760 in)
Splines: 30

Build and materials

Drive type: driven
Construction: preset, pre-greased and pre-sealed hub unit
ABS sensor: 100% tested to monitor wheel speed for ABS
Condition: new

Installation notes

Comes preset, pre-greased and pre-sealed.
Vent holes in the seals prevent installation damage.

Interchange: 402.62017
WE61463 · BR930198

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

WE61463, 402.62017, 512153, BR930198

Buyer's Q&A

Frequently Asked Questions

Is the Timken wheel bearing 512153 a rear unit for the 1997-2008 Chevrolet Corvette?

Yes. Timken 512153 is a rear wheel bearing and hub assembly for the 1997-2008 Chevrolet Corvette, and it also fits the 2004-2008 Cadillac XLR.

What are the bolt circle and pilot sizes on these Timken wheel hubs?

Bolt circle is 120.65 mm (4.750 in) with 5 wheel studs. Hub pilot is 91.42 mm, brake pilot 70.60 mm and wheel pilot 70.10 mm; the flange has 3 bolt holes.

Does this Timken wheel bearing and hub assembly need greasing or setting before it goes on?

No. Timken 512153 comes preset, pre-greased and pre-sealed, and its seals have vent holes to prevent installation damage.

What can a worn Timken hub bearing sound or feel like?

Humming or growling that changes with speed, or vibration at the wheel, can mean the bearing is worn, though other parts cause similar signs. Have it inspected promptly.

Does the Timken wheel bearing assembly 512153 replace BR930198?

Yes. Timken 512153 is listed as a replacement for BR930198, and also for 402.62017 and WE61463.
