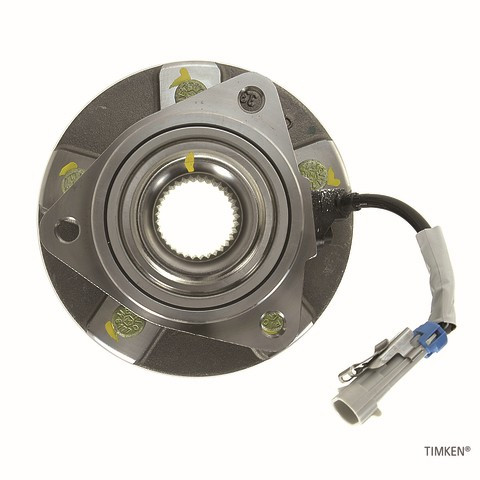

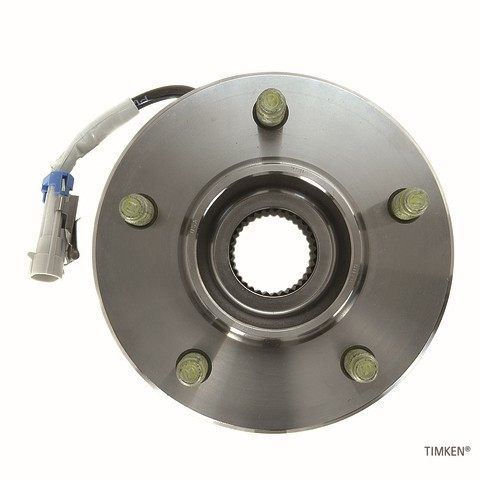

Timken 513189 front wheel bearing and hub assembly for the 2005-2006 Chevrolet Equinox and other vehicles holds the wheel on the axle so it can spin. OE-developed tests control the design, materials and manufacturing process of this Timken wheel bearing and hub assembly.
- Preset, pre-greased and pre-sealed wheel bearing and hub assembly
- Low runout reduces noise and vibration and supports braking performance
- Seal with a reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and vent holes that prevent installation damage
- Precision bearing profiles, uniform internal geometry and enhanced surface finishes to raise load capacity and extend bearing life
- ABS sensors are 100% tested to monitor wheel speed for the anti-lock braking system
Quick facts
- Part: Timken 513189 wheel bearing and hub assembly
- Fits: 2005-2006 Chevrolet Equinox and other vehicles
- Position: Front
- Condition: New
A humming or growling that changes with speed, vibration, or an ABS warning light can mean a wheel bearing is wearing out. Tires and other wheel parts can make a similar noise, so find the cause first: when the wheel is off for a brake or tire service, look at the seal for damage or grease leakage, and leave the road test to a shop.
Fits
It fits the 2005-2006 Chevrolet Equinox, the 2002-2007 Saturn Vue and the 2006 Pontiac Torrent. The vehicle takes two, one on each side of the front axle, so order two and fit them together; this listing is a single assembly.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle diameter: 100 mm (3.937 in)
- Wheel studs: 5
- Flange bolt holes: 3
- Flange diameter: 150 mm (5.906 in)
- Flange offset: 76.01 mm (2.993 in)
- Brake pilot diameter: 66 mm (2.598 in)
- Hub pilot diameter: 91.25 mm (3.593 in)
- Wheel pilot diameter: 70.1 mm (2.76 in)
Build and materials
- Type: Hub unit assembly
- Drive type: Non-driven
- Condition: New
Interchange: 402.62013
WE60801 · BR930326
This part cross-references / interchanges with the following part numbers:
WE60801, 402.62013, 513189, BR930326
Frequently Asked Questions
Is this a Chevy Equinox wheel bearing for the 2005-2006 model years?
Yes. Timken 513189 is a front wheel bearing and hub assembly that fits the 2005-2006 Chevrolet Equinox, with a quantity of two per vehicle.
How many Timken front wheel bearings does the front axle take?
The front axle takes two, one on each side. This listing is a single front hub assembly, so order two.
What are the bolt circle and pilot sizes on these Timken wheel hubs?
The bolt circle is 100 mm (3.937 in) with 5 wheel studs. The brake pilot is 66 mm, the hub pilot 91.25 mm and the wheel pilot 70.1 mm.
Does this Timken wheel bearing come pre-greased?
Yes. Timken 513189 comes preset, pre-greased and pre-sealed, and its seal has vent holes that prevent installation damage.
Is Timken 513189 the same as BR930326?
Yes. BR930326 is one of the numbers Timken 513189 replaces, along with WE60801 and 402.62013.
