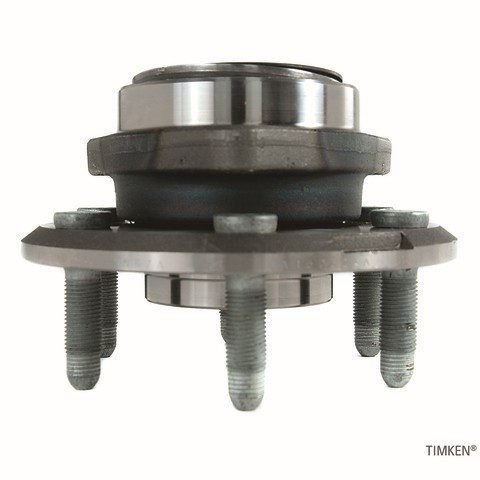

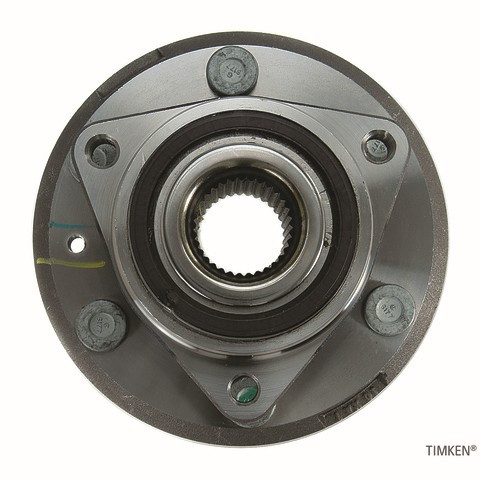

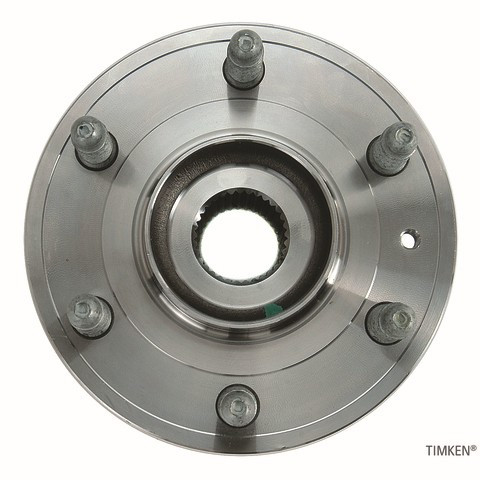

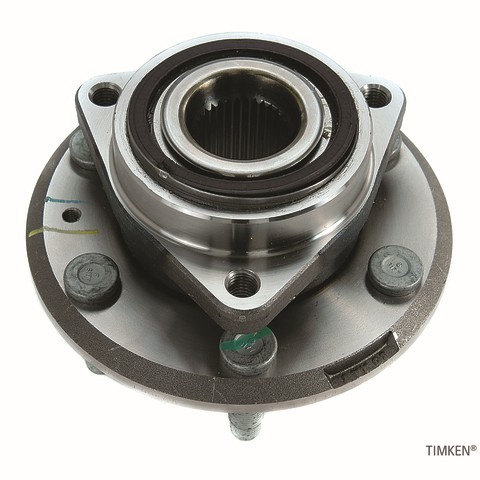

Timken HA590227 wheel bearing and hub assembly for the 2009-2017 Chevrolet Traverse and other vehicles lets the wheel spin on its axle while carrying the vehicle's load. This Timken wheel bearing combines the bearing and hub in one unit, and its design, materials and manufacturing process are controlled by OE-developed tests.
- Preset, pre-greased and pre-sealed hub unit bearing assembly
- Low runout to reduce noise and vibration and help braking performance
- Seals with reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and installation-protecting vent holes
- Bearings with precision profiles, uniform internal geometry and enhanced surface finishes for higher load capacity and longer life
- ABS sensors 100% tested to monitor wheel speed for the anti-lock braking system
Quick facts
- Part: Timken HA590227 wheel bearing and hub assembly
- Fits: 2009-2017 Chevrolet Traverse and other vehicles
- Position: Front, rear
A humming or growling noise from a wheel that changes with speed, vibration, or an ABS warning light can be signs of a worn wheel bearing and hub assembly. Out-of-balance tires, worn brake parts or a loose suspension joint can be behind these signs too, so find the cause before buying.
Fits
It is listed for a wide range of Chevrolet, GMC, Buick and Saturn models, including the 2007-2016 GMC Acadia and the 2008-2017 Buick Enclave. If your car is not named here, look it up in the "Vehicles it fits" section. The 2009-2017 Chevrolet Traverse takes two. This listing is one wheel bearing and hub assembly; the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: front, rear
- Quantity per vehicle: 2
- Bolt circle diameter: 132 mm (5.197 in), 3 flange bolt holes
- Wheel studs: 6
- Flange diameter: 168.83 mm (6.647 in)
- Flange offset: 47.15 mm (1.856 in)
- Hub pilot diameter: 95 mm (3.740 in)
- Wheel pilot diameter: 74.34 mm (2.927 in)
- Brake pilot diameter: 75.55 mm (2.974 in)
- Spline quantity: 33
Build and materials
- Construction: hub unit assembly
- Drive type: driven
Interchange: WE61544 · 513277 · BR930532
This part cross-references / interchanges with the following part numbers:
WE61544, 513277, BR930532
Frequently Asked Questions
Is the Timken wheel bearing and hub assembly HA590227 right for the 2009-2017 Chevrolet Traverse?
Yes. Timken HA590227 is listed for the 2009-2017 Chevrolet Traverse, and the other cars it fits are shown in the "Vehicles it fits" section.
What are the bolt circle and pilot sizes on these Timken hub bearings?
Timken HA590227 has a 132 mm (5.197 in) bolt circle, 3 flange bolt holes and 6 wheel studs. The hub pilot is 95 mm, the wheel pilot 74.34 mm and the brake pilot 75.55 mm.
Can Timken HA590227 be used as one of the Timken front wheel bearings, or is it rear only?
Yes. Timken HA590227 is listed for both the front and rear positions, and this listing is one wheel bearing and hub assembly.
Do Timken wheel hubs like this one have splines and a driven hub?
Yes. This wheel bearing and hub assembly is a driven hub with 33 splines and a flange offset of 47.15 mm (1.856 in).
Does Timken HA590227 replace the 513277 wheel bearing and hub assembly?
Yes. 513277 is one of the interchange numbers listed for Timken HA590227, and the other cross-reference numbers are on the Interchange line.
