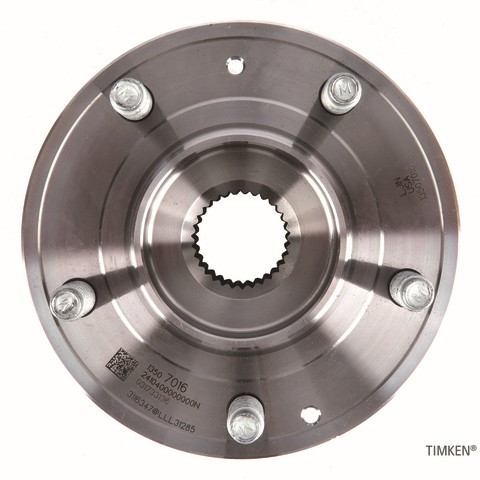

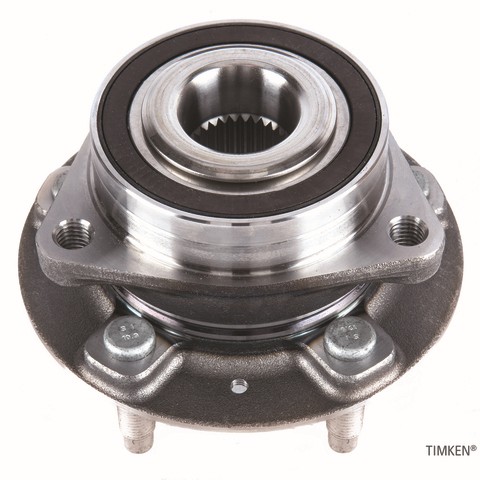

Timken HA590665 wheel bearing and hub assembly for the 2016-2024 Chevrolet Malibu and other vehicles mounts the wheel and lets it turn smoothly. This Timken wheel bearing is controlled through OE-developed tests of its design, materials and manufacturing process.
- Hub unit bearing assembly that is preset, pre-greased and pre-sealed
- Low runout reduces noise and vibration
- Seal with a reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and vent holes to prevent installation damage
- Bearings with precision profiles, uniform internal geometry and enhanced surface finishes to increase load carrying capacity
- ABS sensor 100% tested to monitor wheel speed for anti-lock braking systems (ABS)
Quick facts
- Part: Timken HA590665 wheel bearing and hub assembly
- Fits: 2016-2024 Chevrolet Malibu and other vehicles
- Position: Front, rear
- Condition: New
Humming or growling that rises with speed, vibration or an ABS warning light can mean a wheel bearing is wearing out. Before you replace the hub, rule out tire, brake and suspension problems that can sound or feel similar.
Fits
This hub assembly suits the 2016-2024 Chevrolet Malibu, the 2021-2024 Chevrolet Trailblazer, the 2017-2019 Buick LaCrosse and many other Chevrolet, Buick and Cadillac models. The 2016-2024 Chevrolet Malibu takes two, so this single listing is one of a pair, and the two are normally changed together. If your car is not one of these, look it up in the "Vehicles it fits" section to see whether it takes this hub.
Specifications
Fit and size
- Position: front, rear
- Quantity per vehicle: 2
- Bolt circle diameter: 115 mm (4.528 in)
- Brake pilot diameter: 70 mm (2.755 in)
- Hub pilot diameter: 91.25 mm (3.592 in)
- Wheel pilot diameter: 70.11 mm (2.760 in)
- Flange diameter: 146 mm (5.748 in)
- Flange offset: 42.06 mm (1.655 in)
- Flange bolt holes: 3
- Wheel studs: 5
- Splines: 30
Build and materials
- Drive type: driven
- ABS sensor: 100% tested to monitor wheel speed for anti-lock braking systems (ABS)
- Condition: new
Interchange: 513398 · BR930954
Frequently Asked Questions
Is Timken HA590665 a wheel bearing that fits the 2016-2024 Chevy Malibu?
Yes, Timken HA590665 fits the 2016-2024 Chevrolet Malibu, which takes two. If your car is a different model, look it up in the "Vehicles it fits" section.
What bolt circle and stud count does Timken HA590665 have?
The bolt circle is 115 mm (4.528 in), with 3 flange bolt holes, 5 wheel studs and 30 splines. The hub pilot diameter is 91.25 mm (3.592 in).
Is HA590665 one of the Timken front wheel bearings?
Yes, the catalog lists this hub assembly for the front position, and it also lists it for the rear. It is sold one per listing.
Are Timken wheel hubs like this one pre-greased?
Yes, this hub unit bearing assembly is preset, pre-greased and pre-sealed. Its seal also has vent holes to prevent installation damage.
Is this Timken wheel bearing and hub assembly the same as 513398?
Yes, 513398 is one of the numbers Timken HA590665 replaces.
