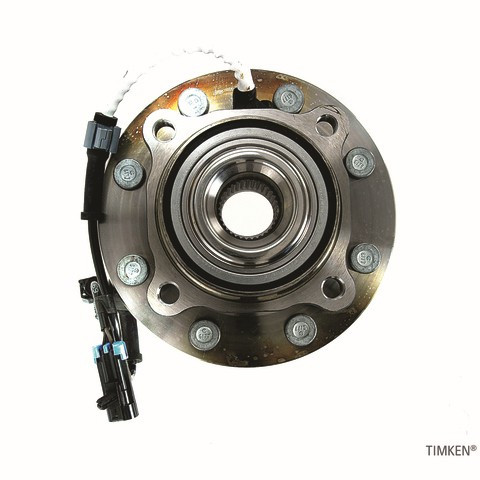

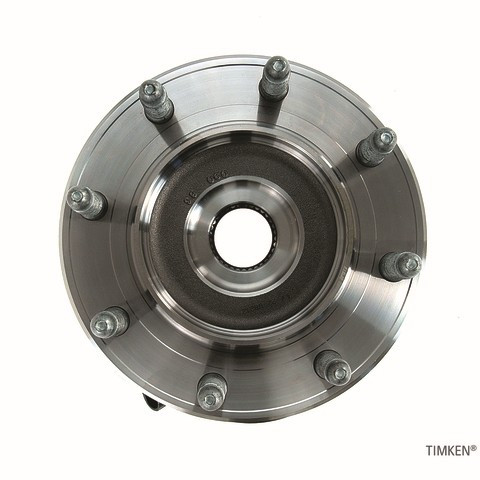

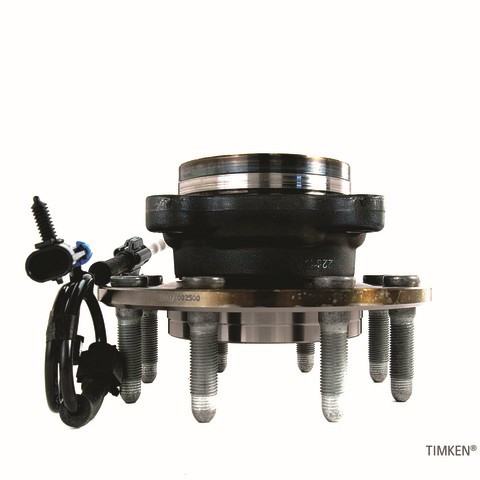

Timken SP580310 front wheel bearing and hub assembly for the 2005-2006 Chevrolet Silverado 1500 and other vehicles holds the wheel on the axle and lets it turn freely. This Timken wheel bearing and hub assembly arrives preset, pre-greased and pre-sealed, and OE-developed tests control its design, materials and manufacturing process.
- Low runout to cut noise and vibration and improve braking performance
- Seal with a reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and vent holes that protect it during installation
- Bearings with precision profiles, uniform internal geometry and enhanced surface finishes to raise load capacity and bearing life
Quick facts
- Part: Timken SP580310 wheel bearing and hub assembly
- Fits: 2005-2006 Chevrolet Silverado 1500 and other vehicles
- Position: Front
A humming or growling noise that rises with speed, vibration or an ABS warning light can point to a worn hub bearing. Other worn parts can make similar noises, so with the engine off, look at the tires for uneven wear and around the hub for grease leaks before replacing it.
Fits
The 2005-2006 Chevrolet Silverado 1500, the 2005-2006 GMC Sierra 1500 and the 1999-2004 Chevrolet Silverado 2500 take this assembly, two per vehicle, and so do many other vehicles. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one front assembly; the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle: 165.10 mm (6.500 in)
- Wheel studs: 8
- Flange bolt holes: 4
- Flange diameter: 199.30 mm (7.846 in)
- Flange offset: 58.35 mm (2.297 in)
- Hub pilot diameter: 105.84 mm (4.167 in)
- Wheel pilot diameter: 116.69 mm (4.594 in)
- Brake pilot diameter: 118.11 mm (4.650 in)
- Splines: 33
Build and materials
- Drive type: Driven
- Construction: preset, pre-greased and pre-sealed
- ABS sensor: 100% tested to monitor wheel speed
Interchange: 402.66005
WE60884 · 515058 · 515086 · BR930416 · BR930626 · BR931000
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
WE60884, 402.66005, 515058, 515086, BR930416, BR930626, BR931000
Frequently Asked Questions
Is this a Chevy Silverado 1500 wheel bearing that fits the 2005-2006 Chevrolet Silverado 1500?
Yes. Timken SP580310 is a front wheel bearing and hub assembly for the 2005-2006 Chevrolet Silverado 1500; for another truck, look up its year and engine in the "Vehicles it fits" section.
Are Timken wheel hubs like this one pre-greased?
Yes. This Timken assembly comes preset, pre-greased and pre-sealed.
What is the bolt circle on these Timken front wheel bearings?
Timken SP580310 has a 165.10 mm (6.500 in) bolt circle, with 8 wheel studs and 4 flange bolt holes.
Is this assembly a driven type, and how many splines does it have?
Yes. This front wheel bearing and hub assembly is a driven type with 33 splines.
Does Timken SP580310 replace part number 515058?
Yes. 515058 is on the interchange list for Timken SP580310.
