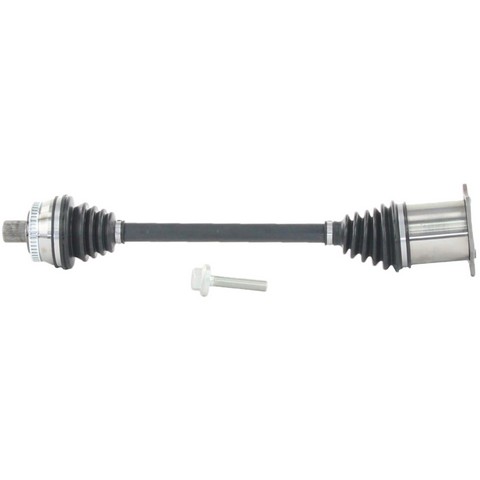

TrakMotive AD-8105 front left CV axle shaft for the 2002-2005 Audi A4 Quattro carries drive torque from the drivetrain to the front left wheel. This TrakMotive CV axle flexes with steering and suspension travel while it turns the wheel.
- Flange inboard joint
- Outboard joint with 38 splines and a single bolt
- Neoprene boots on both the inboard and outboard joints
- Window-type ABS tone ring with 45 teeth
Quick facts
- Part: TrakMotive AD-8105 CV axle shaft
- Fits: 2002-2005 Audi A4 Quattro
- Position: Front left
- Condition: New
A clicking or popping noise on turns, or a vibration while driving, can mean a worn axle joint. A torn boot or grease thrown around the joint can be seen with the engine off. If the axle is the cause, this one replaces it, but other parts can make similar noises, so find the cause before ordering.
Fits
It fits the 2002-2005 Audi A4 Quattro, one axle per side. Both front axles are normally replaced together; this listing is one axle for the front left, and the front right is a separate part.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Overall compressed length: 592 mm (23.31 in)
- Outboard splines: 38
- Axle bolt thread size: M16x1.5
- Axle bolt hex size: 27 mm
- Axle bolt length: 97 mm
Build and materials
- Inboard joint: flange
- Outboard joint: Audi style spline bolt
- ABS tone ring: included, window type, 45 teeth
- Boot material: neoprene (inboard and outboard)
- Condition: new
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft. The axle nut is not included, so plan on a new one.
Interchange: 66-7301 · VW-7187A · VW-7287A · 80-9079 · AD-8-8617A · AX-91879
NCV23522 · 652771 · 109105 · 5313 · 305069 · 77907 · 40704041 · AD10516 · 7091879
This part cross-references / interchanges with the following part numbers:
NCV23522, 652771, 109105, 66-7301, 5313, VW-7187A, VW-7287A, 80-9079, 305069, 77907, 40704041, AD-8-8617A, AD10516, AD-8105, 7091879, AX-91879
Frequently Asked Questions
Is the TrakMotive AD-8105 front left CV axle shaft right for the 2002-2005 Audi A4 Quattro?
Yes. TrakMotive AD-8105 is the front left axle for the 2002-2005 Audi A4 Quattro, one axle per listing; the front right is a separate part.
Does this CV axle have an ABS tone ring?
Yes. The TrakMotive AD-8105 includes a window-type ABS tone ring with 45 teeth.
Does the TrakMotive CV axle shaft come with the axle nut?
No, the axle nut is not included, so plan on a new one. The axle bolt spec is M16x1.5 thread, 27 mm hex and 97 mm long.
How can I tell if a front CV axle boot is damaged?
A torn neoprene boot or grease thrown around the joint can be seen with the engine off. A clicking noise on turns is another sign, and a shop can road-test it.
How long is the TrakMotive AD-8105 axle?
Its overall compressed length is 592 mm (23.31 in), and the outboard end has 38 splines.
