Rear Left CV Axle Shaft for 2012-2018 Audi A6 Quattro & More - TrakMotive AD-8196

$357.99

TrakMotive CV Axle Shaft AD-8196 - view 2

TrakMotive CV Axle Shaft AD-8196 - view 3

Part number: AD-8196

UPC: 195013072646

Condition: New

Weight: 16.60 LBS

Item Package Quantity: 1

$357.99

Current Stock: 6

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

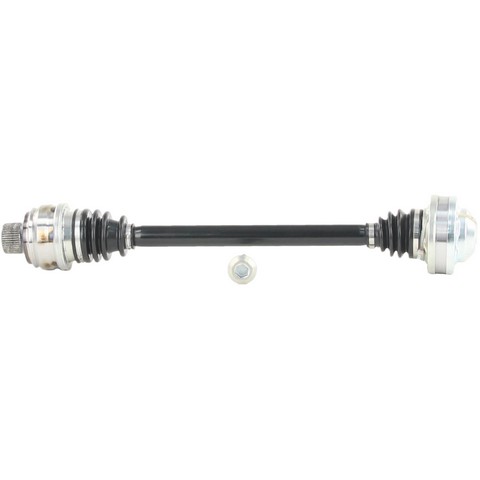

TrakMotive CV Axle Shaft P/N:AD-8196

$357.99

Description

TrakMotive AD-8196 rear left CV axle shaft for the 2012-2018 Audi A6 Quattro and other vehicles sends drive torque to the wheel while the suspension moves.

Bolt-on inboard joint with 6 bolt holes
Outboard joint with a spline bolt and 42 outboard splines
Neoprene boots on both the inboard and outboard joints
Outboard shaft bolt with M16x1.5 thread, 17 mm hex and 85 mm length
Overall length of 620 mm compressed and 698 mm extended

Quick facts

Part: TrakMotive AD-8196 CV axle shaft
Fits: 2012-2018 Audi A6 Quattro and other vehicles
Position: Rear left
Condition: New

A torn boot with grease thrown around the joint, a clicking noise in turns or vibration under acceleration can mean the axle joint is worn. These signs alone do not prove the axle is at fault, since a worn wheel bearing can also cause noise and vibration. The rear axle takes one shaft per side; this listing is the rear left, and the rear right is ordered separately. Shafts on both sides are often replaced as a pair.

Fits

The 2012-2018 Audi A6 Quattro is one of the vehicles it fits, along with the 2012-2018 Audi A7 Quattro and the 2011-2018 Audi A8 Quattro.

Specifications

Fit and size

Position: Rear left
Quantity per application: 1
Overall compressed length: 620 mm (24.41 in)
Overall extended length: 698 mm (27.48 in)
Inboard joint bolt holes: 6
Outboard splines: 42
Outboard shaft bolt: M16x1.5 thread, 17 mm hex, 85 mm long

Build and materials

Inboard joint: bolt-on
Outboard joint: Audi style spline bolt
Boot material: neoprene, inboard and outboard
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One rear left CV axle shaft. The axle nut is not included, so plan on a new nut rather than reusing the old one.

Interchange: NCV23020 · PR23020 · 8R0501203D

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV23020, PR23020, 8R0501203D, AD-8196

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive AD-8196 right for the 2012-2018 Audi A6 Quattro?

Yes, TrakMotive AD-8196 is listed for the 2012-2018 Audi A6 Quattro and for other vehicles too. If your car is not named here, look it up in the "Vehicles it fits" section.

Does this TrakMotive CV axle shaft come with the axle nut?

No, the axle nut is not included, and this listing is one rear left axle shaft. Plan on a new nut instead of reusing the old one.

What bolt does the TrakMotive CV axle use at the outboard joint?

TrakMotive AD-8196 has an Audi style spline bolt outboard joint with 42 splines and one bolt. The bolt is M16x1.5 thread, 17 mm hex and 85 mm long.

Can a clicking noise in turns mean my rear left CV axle is worn?

It can mean a worn joint, as can vibration under acceleration or grease around a torn boot. A shop can confirm the cause.

Is NCV23020 a cross-reference for this rear left axle?

Yes. NCV23020 is one of the numbers this axle replaces, along with PR23020 and 8R0501203D.
