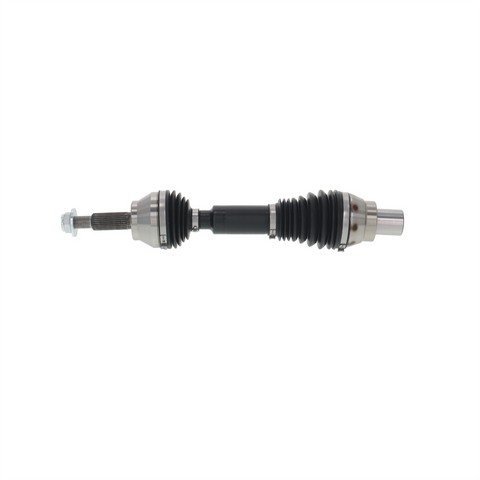

TrakMotive FD-8167XTT front right CV axle shaft for the 2003-2011 Ford Ranger and other vehicles sends drive torque to the wheel. Its sliding center bar adds up to 44 mm more travel than an OEM CV shaft, and the joints can reach a 47 degree articulation angle against a maximum of 23 degrees on a typical OE CV joint.
A clicking or popping noise in turns, vibration while driving, or grease thrown from a torn boot can mean this shaft is worn, though a worn wheel bearing or a loose axle nut can be behind similar noises.
As a front right CV axle shaft, it fits the 2003-2011 Ford Ranger, the 2002-2003 Ford Explorer, the 2004-2010 Mazda B4000 and other vehicles. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one shaft for the front right of the 2003-2011 Ford Ranger; the front left is a separate part.
Fit and size
Build and materials
One CV axle shaft and one self-locking axle nut. The ABS tone ring is not included.
Interchange: 80-2958 · AX-9483
NCV11152 · NCV11152XDP · 71278
This part cross-references / interchanges with the following part numbers:
Is this CV axle right for the 2002-2003 Ford Explorer?
Yes. TrakMotive FD-8167XTT is the front right CV axle shaft for the 2002-2003 Ford Explorer. For other vehicles, open the "Vehicles it fits" section.
Does this TrakMotive CV axle come with an axle nut?
Yes. TrakMotive FD-8167XTT includes one self-locking axle nut with an M22x1.5 thread and a 32 mm hex. The ABS tone ring is not included.
How long is this TrakMotive CV axle shaft?
The overall compressed length is 509 mm (20.04 in). The inboard end is a female joint with 27-1T splines, and the outboard end has 27 splines.
Why does my front right CV axle click when I turn?
A click or pop in turns can mean a worn CV joint, and grease thrown from a torn boot can be another sign. A shop can inspect the axle; have it looked at promptly.
Is NCV11152 an interchange number for this front right axle shaft?
Yes. NCV11152 is listed as an interchange number for TrakMotive FD-8167XTT; the other cross-reference numbers are on the Interchange line.
