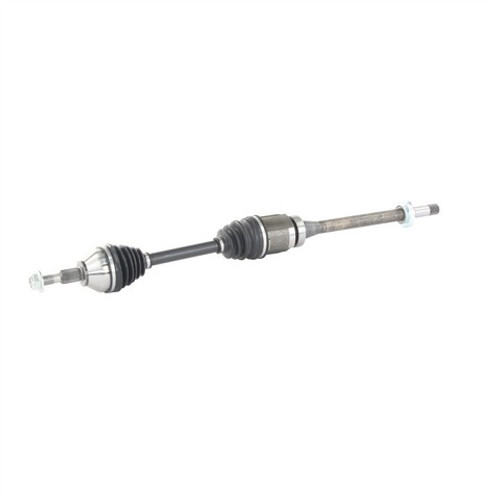

TrakMotive FD-8227 front right CV axle shaft for the 2013-2020 Ford Fusion and other vehicles sends engine torque to the front right wheel. Its two joints let the wheel keep driving while it turns and moves with the suspension.
A clicking noise on turns, grease around a split boot or vibration when accelerating can mean this CV axle shaft is worn, though a wheel bearing or an out-of-balance tire can be behind similar signs.
This fits the 2013-2020 Ford Fusion, so a 2014 Ford Fusion CV axle is covered, and the 2013-2016 Lincoln MKZ. This listing is one axle for the front right: both cars take one on this side, and the front left is ordered as its own part.
Fit and size
Build and materials
One CV axle shaft with its axle nut. An ABS tone ring is not included.
Interchange: 66-2314
169227 · NCV11189 · DG913B436CA · DG913B436CB · DG913B436CC · DG913B436PB · DG913B436PC · DG9Z3B436B · DG9Z3B436H · FG9Z3B436A · FG9Z3B436B · HG9Z3B436D · HG9Z3B436M
This part cross-references / interchanges with the following part numbers:
Is this a CV axle replacement for a 2014 Ford Fusion in the 2013-2020 range?
Yes. TrakMotive FD-8227 fits the 2013-2020 Ford Fusion, so the 2014 model year is covered. It is the front right axle.
Is this a 2015 Ford Fusion cv axle replacement for the left or right side?
It is for the front right. TrakMotive FD-8227 fits the 2013-2020 Ford Fusion, 2015 included, and the front left axle is a separate part.
How many splines and what axle nut size does this TrakMotive cv axle have?
TrakMotive FD-8227 has 35 inboard splines and 27 outboard splines. Its axle nut is M22x1.5 with a 32 mm hex, and the nut is included.
Does this TrakMotive cv axle shaft come with the axle nut and an ABS tone ring?
Yes, it comes with the axle nut, which locks by staking. No, an ABS tone ring is not included.
How can I check the boots on this front right CV axle shaft?
With the engine off, look at the neoprene boots on both joints for splits, cracks or grease thrown onto nearby parts. A damaged boot can let grease out and dirt in.
