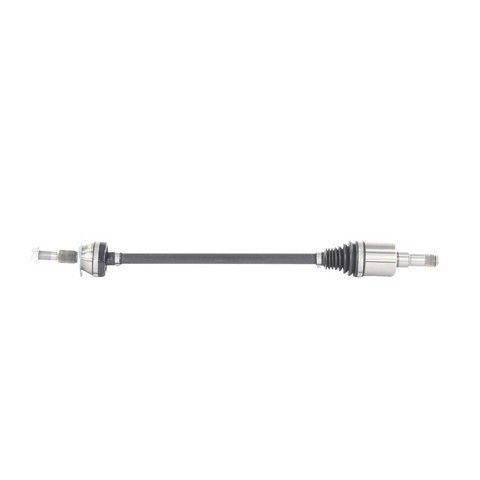

Rear Right CV Axle Shaft for 2019-2020 Ford Edge & More - TrakMotive FD-86052

$126.99

TrakMotive CV Axle Shaft FD-86052

TrakMotive CV Axle Shaft FD-86052 - view 2

TrakMotive CV Axle Shaft FD-86052 - view 3

TrakMotive CV Axle Shaft FD-86052

TrakMotive CV Axle Shaft FD-86052 - view 2

TrakMotive CV Axle Shaft FD-86052 - view 3

Part number: FD-86052

UPC: 840140517293

Condition: New

Weight: 14.40 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$126.99

Current Stock: 5

Quantity:

Adding to cart… The item has been added

Have questions?

TrakMotive CV Axle Shaft P/N:FD-86052

TrakMotive CV Axle Shaft P/N:FD-86052

$126.99

$126.99

Description

TrakMotive FD-86052 rear right CV axle shaft for the 2019-2020 Ford Edge and other vehicles sends drive torque to the wheel. Its joints flex as the suspension moves.

Thermoplastic boots on both the inboard and outboard joints
Male inboard joint and conventional outboard joint, each with a splined shaft connection
Self-locking axle nut included with the shaft
Overall length of 857 mm compressed and 912 mm extended

Quick facts

Part: TrakMotive FD-86052 CV axle shaft
Fits: 2019-2020 Ford Edge and other vehicles
Position: Rear right
Condition: New

Clicking on turns, grease around the wheel from a torn boot, or vibration under acceleration can mean this CV axle shaft is worn, though a wheel bearing or a tire problem can be behind the same signs. Find the cause before you replace it.

Fits

It fits the 2019-2020 Ford Edge and the 2019-2020 Lincoln Nautilus, and the rear right side of both takes one. This listing is one axle shaft for the rear right; the rear left on that axle is a separate part and is normally done at the same time.

Specifications

Fit and size

Position: Rear right
Quantity per vehicle: 1
Overall compressed length: 857 mm (33 3/4 in)
Overall extended length: 912 mm (35 7/8 in)
Splines: 25 inboard, 27 outboard
Axle nut: M22*1.5 thread, 31.8 mm (1 1/4 in) hex

Build and materials

Boot material: thermoplastic, inboard and outboard
ABS tone ring: not included
Grade type: Premium
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its self-locking axle nut. The ABS tone ring is not included.

Interchange: NCV11213

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV11213, FD-86052

Buyer's Q&A

Frequently Asked Questions

Is this a CV axle for the 2019-2020 Ford Edge?

Yes. TrakMotive FD-86052 is a rear right axle shaft for the 2019-2020 Ford Edge and the 2019-2020 Lincoln Nautilus, and each takes one on that side.

Does this TrakMotive CV axle come with the axle nut?

Yes. TrakMotive FD-86052 includes a self-locking axle nut with M22*1.5 thread and a 31.8 mm hex. The ABS tone ring is not included.

How long is the TrakMotive CV axle shaft?

This rear right axle shaft measures 857 mm (33 3/4 in) compressed and 912 mm (35 7/8 in) extended.

How many splines are on each end of this axle shaft?

The inboard end has 25 splines and the outboard end has 27 splines. The inboard joint is male and the outboard joint is conventional.

Does NCV11213 interchange with this axle shaft?

Yes. NCV11213 is listed as an interchange number for TrakMotive FD-86052.
