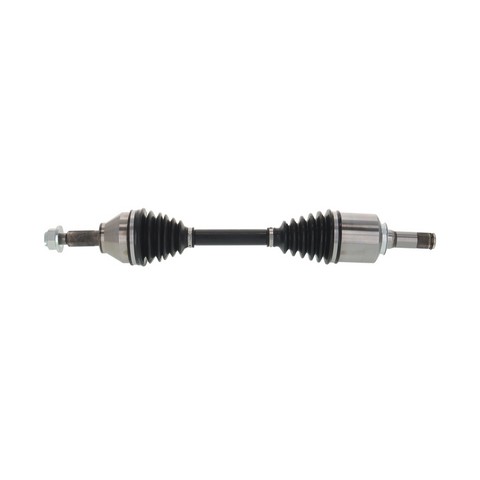

TrakMotive FD-8333 front left CV axle shaft for the 2009-2019 Ford Flex and other vehicles carries drive torque to the wheel and flexes with suspension and steering movement. This TrakMotive CV axle shaft has a conventional outboard joint and a male inboard joint.
A clicking noise on turns, grease flung from a split boot or vibration under acceleration can mean the axle is worn, though a worn wheel bearing or an out-of-balance tire can be behind them as well. Front axles are normally replaced as a pair; this listing is one shaft for the front left, and the front right is a separate part.
It is a CV axle replacement for the 2009-2019 Ford Flex and the 2010-2019 Lincoln MKT, and the front left position on each takes one.
Fit and size
Build and materials
One front left CV axle shaft with its axle nut. The ABS tone ring is not included.
Interchange: 169333
This part cross-references / interchanges with the following part numbers:
Is this a CV axle replacement for a 2009 Ford Flex?
Yes. TrakMotive FD-8333 is the front left axle for the 2009-2019 Ford Flex, which includes 2009, and it also fits the 2010-2019 Lincoln MKT.
Does this TrakMotive CV axle come with the axle nut?
Yes. The axle nut is included: a self-locking M22x1.5 nut with a 32 mm hex size. The ABS tone ring is not included.
How many splines does the TrakMotive FD-8333 have?
TrakMotive FD-8333 has 27 splines on the inboard end and 38 on the outboard end. Its overall compressed length is 653 mm (25.71 in).
How can I tell if a front left CV axle shaft is worn?
With the engine off, look for a torn or leaking boot and grease around the joint. A clicking noise when turning can also point to a worn axle; a shop can test the joints.
Does the TrakMotive FD-8333 replace part number 169333?
Yes. 169333 is listed as an interchange number for TrakMotive FD-8333, a front left CV axle shaft with a 27-spline inboard end and a 38-spline outboard end.
