Rear Right CV Axle Shaft for 2022-2023 Ford F-150 Lightning - TrakMotive FD-86062

$207.99

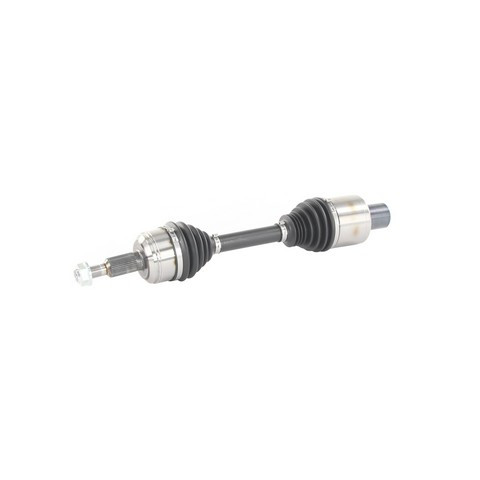

TrakMotive CV Axle Shaft FD-86062 - view 2

TrakMotive CV Axle Shaft FD-86062 - view 3

Part number: FD-86062

UPC: 840140518023

Condition: New

Weight: 23.80 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$207.99

Current Stock: 3

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

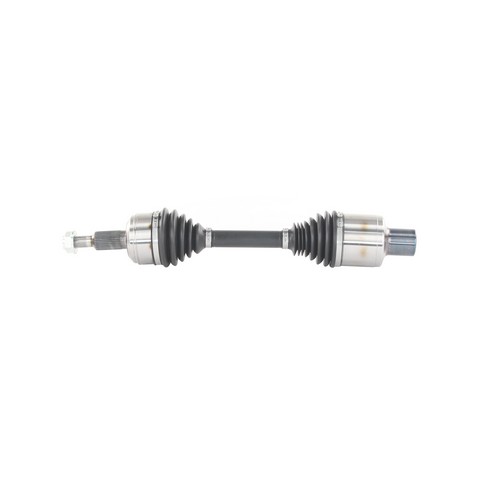

TrakMotive CV Axle Shaft P/N:FD-86062

$207.99

Description

TrakMotive FD-86062 rear right CV axle shaft for the 2022-2023 Ford F-150 Lightning carries drive torque to the rear wheel. This TrakMotive CV axle has a spline connection at both ends.

Female inboard joint with 34-1T inboard splines
Conventional outboard joint with 34 outboard splines
Thermoplastic boots on both the inboard and outboard joints
Self-locking axle nut included, M24x2 thread with a 36 mm hex

Quick facts

Part: TrakMotive FD-86062 CV axle shaft
Fits: 2022-2023 Ford F-150 Lightning
Position: Rear right

A clicking or popping noise on turns, a vibration while driving, or grease thrown from a torn boot can mean an axle shaft is wearing out. These signs alone do not prove the axle is the problem, since a worn wheel bearing can make similar noise.

Fits

It is a direct-fit replacement for the 2022-2023 Ford F-150 Lightning, which takes one on the rear right. This listing is one axle shaft; the rear left is a separate part, and both sides are normally replaced together.

Specifications

Fit and size

Position: rear right
Quantity per vehicle side: 1
Overall compressed length: 645 mm (25.375 in)
Overall extended length: 700 mm (27.56 in)
Inboard splines: 34-1T
Outboard splines: 34
Axle nut thread: M24x2, 36 mm (1.375 in) hex

Build and materials

Inboard joint: female
Outboard joint: conventional
Joint boots: thermoplastic, inboard and outboard
Axle nut: included, self-locking
ABS tone ring: not included
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut.

Interchange: NCV11267

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV11267, FD-86062

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive FD-86062 axle right for the 2022-2023 Ford F-150 Lightning?

Yes, TrakMotive FD-86062 is the rear right CV axle shaft for the 2022-2023 Ford F-150 Lightning, and the left side is a separate part.

Does the TrakMotive CV axle shaft come with its axle nut?

Yes, the TrakMotive FD-86062 includes an M24x2 self-locking axle nut with a 36 mm hex, but the ABS tone ring is not included.

How many splines does this CV axle shaft have on each end?

The inboard end is a female joint with 34-1T splines. The outboard end is a conventional joint with 34 splines.

What can a torn boot on this CV axle shaft lead to?

A torn thermoplastic boot can let grease out and dirt in, and that can wear the joint. Grease thrown around the wheel area can be a sign of a torn boot.

Is NCV11267 an interchange number for this CV axle shaft?

Yes. NCV11267 is listed as an interchange number for the TrakMotive FD-86062 rear right CV axle shaft.
