Front CV Axle Shaft for 2001-2005 Porsche 911 - TrakMotive VW-86062

$134.99

TrakMotive CV Axle Shaft VW-86062 - view 2

TrakMotive CV Axle Shaft VW-86062 - view 3

TrakMotive CV Axle Shaft VW-86062 - view 4

TrakMotive CV Axle Shaft VW-86062 - view 5

Part number: VW-86062

UPC: 840140514278

Condition: New

Weight: 10.80 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$134.99

Current Stock: 11

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

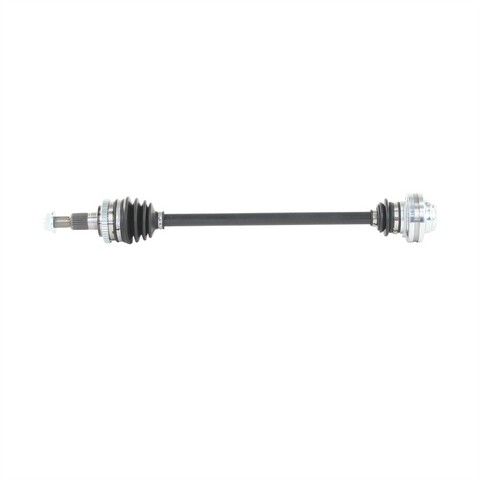

TrakMotive CV Axle Shaft P/N:VW-86062

$134.99

Description

TrakMotive VW-86062 front CV axle shaft for the 2001-2005 Porsche 911 carries drive torque to the front wheel as the suspension and steering move. This TrakMotive CV axle has a bolt-on inboard joint and a conventional outboard joint.

Six bolt holes at the inboard joint
28 splines at the outboard end
Overall length of 684 mm compressed and 721 mm extended
Axle nut thread of M22x1.5 with a 32 mm hex size

Quick facts

Part: TrakMotive VW-86062 CV axle shaft
Fits: 2001-2005 Porsche 911
Position: Front
Condition: New

A clicking or popping noise in turns, vibration while driving, or grease around a torn boot can mean the shaft is worn. Before you replace the shaft, rule out a wheel bearing, tire or brake problem, since those can make similar noises or vibration.

Fits

This shaft is a direct-fit replacement for the 2001-2005 Porsche 911. The 2001-2005 Porsche 911 takes two. This listing is one side; the other side of that axle is normally done at the same time.

Specifications

Fit and size

Position: front
Quantity per vehicle: 2
Overall compressed length: 684 mm (26.94 in)
Overall extended length: 721 mm (28.38 in)
Axle nut thread: M22x1.5, 32 mm hex, 19 mm height
Inboard joint bolt holes: 6
Outboard splines: 28

Build and materials

Inboard joint: bolt-on
Outboard joint: conventional
ABS tone ring: not included (toothed ring type, 48 teeth)
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft. The axle nut is not included, so plan on a new nut.

Interchange: NCV70043

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV70043, VW-86062

Buyer's Q&A

Frequently Asked Questions

Is this TrakMotive VW-86062 front axle right for the 2001-2005 Porsche 911?

Yes. TrakMotive VW-86062 is a front CV axle shaft for the 2001-2005 Porsche 911, which takes two.

Does the TrakMotive CV axle shaft come with an axle nut?

No. TrakMotive VW-86062 ships without the axle nut, so plan on a new one. The nut thread is M22x1.5 with a 32 mm hex.

How long is this CV axle shaft compressed and extended?

This CV axle shaft measures 684 mm (26.94 in) compressed and 721 mm (28.38 in) extended.

What signs can show a front CV axle shaft is worn?

A clicking or popping noise in turns, vibration while driving, or grease thrown from a split boot can mean the shaft is worn. A shop can confirm it.

Does this CV axle include the ABS tone ring?

No. The ABS tone ring is not included with this shaft. The ring type is listed as toothed, with 48 teeth.
