Front Left CV Axle Shaft for 2013-2018 Cadillac ATS - TrakMotive GM-8359

$139.99

TrakMotive CV Axle Shaft GM-8359 - view 2

TrakMotive CV Axle Shaft GM-8359 - view 3

TrakMotive CV Axle Shaft GM-8359 - view 4

TrakMotive CV Axle Shaft GM-8359 - view 5

Part number: GM-8359

UPC: 844084033598

Condition: New

Weight: 12.50 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$139.99

Current Stock: 9

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

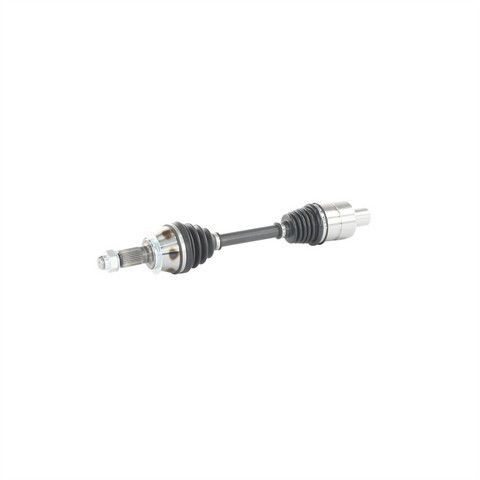

TrakMotive CV Axle Shaft P/N:GM-8359

$139.99

Description

TrakMotive GM-8359 front left CV axle shaft for the 2013-2018 Cadillac ATS carries drive torque to the wheel while the suspension moves. This TrakMotive CV axle replaces a shaft with a torn boot or worn joints.

Female inboard joint with 34 splines and conventional outboard joint with 30 splines
Neoprene boots on both the inboard and outboard joints
Axle nut included, with an M24x1.5 thread, 36 mm hex and stake-type locking
Overall compressed length of 533 mm (20.98 in)

Quick facts

Part: TrakMotive GM-8359 CV axle shaft
Fits: 2013-2018 Cadillac ATS
Position: Front left
Condition: New

A clicking or popping noise in turns, grease thrown from a torn boot, or vibration while driving can mean the axle is worn. Before you replace it, rule out a worn wheel bearing or a tire problem, since those can cause similar noises and need their own repair.

Fits

It is a direct-fit replacement for the 2013-2018 Cadillac ATS. This listing is one shaft for the front left; the other side of that front axle is a separate part and is normally replaced at the same time. The car takes one on each side of the axle.

Specifications

Fit and size

Position: Front left
Overall compressed length: 533 mm (20.98 in)
Inboard splines: 34
Outboard splines: 30
Axle nut thread size: M24x1.5
Axle nut hex size: 36 mm (1.43 in)

Build and materials

Inboard joint: Female
Outboard joint: Conventional
Joint boot material: Neoprene, inboard and outboard
Axle nut locking type: Stake
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front left CV axle shaft and one axle nut. The ABS tone ring is not included.

Interchange: 179359 · NCV10284 · GM10531ER

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

179359, NCV10284, GM10531ER, GM-8359

Buyer's Q&A

Frequently Asked Questions

Is this TrakMotive GM-8359 CV axle right for the 2013-2018 Cadillac ATS?

Yes. TrakMotive GM-8359 is a front left CV axle shaft that fits the 2013-2018 Cadillac ATS. The car takes one on each side of the axle.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. The TrakMotive GM-8359 comes with its axle nut, a stake-type nut with an M24x1.5 thread. The ABS tone ring is not included.

What socket size does the axle nut take?

The axle nut has a 36 mm hex (1.43 in) and a 36 mm socket size. Its thread is M24x1.5.

Why is there grease around my CV axle boot?

A torn boot can let grease escape and dirt in, which can wear the joint. Both joints on this shaft have neoprene boots; a shop can inspect the shaft if you see grease.

How long is this front left axle shaft?

The TrakMotive GM-8359 has an overall compressed length of 533 mm (20.98 in), with 34 inboard splines and 30 outboard splines.
