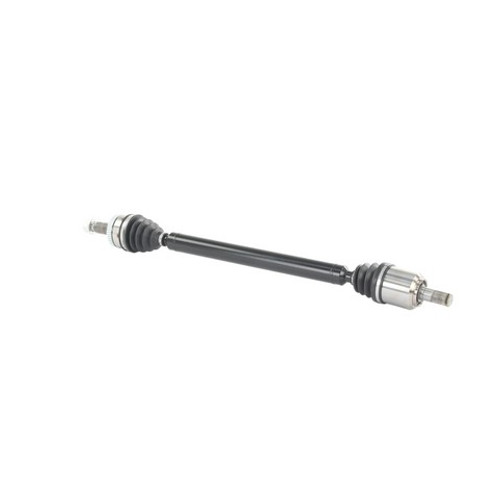

TrakMotive HY-8359 front CV axle shaft for the 2016-2018 Kia Sorento and other vehicles carries drive torque to the front wheel while the suspension moves.
A clicking or popping noise on turns, vibration under acceleration, or a torn boot with grease thrown around it can mean a CV axle shaft is worn. A worn wheel bearing, tie rod end or engine mount can be behind similar noises and vibration too, so find the cause before buying. The front axle takes one shaft on each side, and this listing is a single shaft.
It fits the 2016-2018 Kia Sorento and the 2017-2018 Hyundai Santa Fe Sport. An axle with an ABS ring also suits non-ABS applications unless noted otherwise.
Fit and size
Build and materials
One CV axle shaft with the axle nut included.
Interchange: NCV75102 · 495004Z630
This part cross-references / interchanges with the following part numbers:
Does the TrakMotive HY-8359 fit the 2017-2018 Hyundai Santa Fe Sport?
Yes. TrakMotive HY-8359 fits the 2017-2018 Hyundai Santa Fe Sport and suits both the front left and the front right.
Does this TrakMotive CV axle come with the axle nut?
Yes. The axle nut is included. It has an M22x1.5 thread and a 32 mm hex, and it locks in place by staking.
Does this TrakMotive CV axle shaft have an ABS ring?
Yes. TrakMotive HY-8359 includes a toothed ABS tone ring with 52 teeth.
What are the boots on this CV axle made of?
Both the inboard and outboard joint boots on this axle shaft are neoprene.
How do I match this CV axle to my old shaft?
Compare the overall compressed length of 981 mm (38.62 in) and the spline counts: 28 on the inboard joint and 30 on the outboard joint.
