Front Right CV Axle Shaft for 2009-2014 Honda Fit - TrakMotive HO-8417

$126.99
TrakMotive CV Axle Shaft HO-8417
TrakMotive CV Axle Shaft HO-8417 - view 2
TrakMotive CV Axle Shaft HO-8417 - view 3
TrakMotive CV Axle Shaft HO-8417 - view 4
TrakMotive CV Axle Shaft HO-8417 - view 5
TrakMotive CV Axle Shaft HO-8417
TrakMotive CV Axle Shaft HO-8417 - view 2
TrakMotive CV Axle Shaft HO-8417 - view 3
TrakMotive CV Axle Shaft HO-8417 - view 4
TrakMotive CV Axle Shaft HO-8417 - view 5

Vehicles this part fits
    Part number: HO-8417
    UPC: 844084044174
    Condition: New
    Weight: 11.00 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $126.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    TrakMotive CV Axle Shaft P/N:HO-8417
    TrakMotive CV Axle Shaft P/N:HO-8417
    $126.99
    $126.99

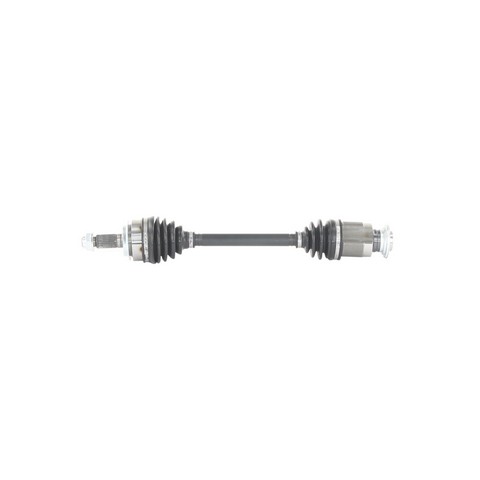

    TrakMotive HO-8417 front right CV axle shaft for the 2009-2014 Honda Fit carries drive torque to the front right wheel. Joints at both ends let the TrakMotive CV axle steer and flex with the suspension.

    • Female inboard joint with 27-2T splines and a conventional outboard joint with 26 splines
    • Neoprene boots on both the inboard and outboard joints
    • Overall compressed length of 569 mm (22.4 in)
    • Axle nut included, with an M22x1.5 thread, a 32 mm hex and stake locking

    Quick facts

    • Part: TrakMotive HO-8417 CV axle shaft
    • Fits: 2009-2014 Honda Fit
    • Position: Front right
    • Condition: New

    A clicking or popping sound in tight turns, grease thrown from a torn boot, or vibration under acceleration can mean this axle is worn, though a worn wheel bearing or an out-of-balance tire can be behind similar symptoms. Find the cause before replacing the axle.

    Fits

    It is a direct-fit CV axle replacement for the 2009-2014 Honda Fit.

    Specifications

    Fit and size

    • Position: front right
    • Quantity per vehicle: 1
    • Overall compressed length: 569 mm (22.4 in)
    • Inboard splines: 27-2T
    • Outboard splines: 26
    • Axle nut thread size: M22x1.5
    • Axle nut hex size: 32 mm (1.25 in)

    Build and materials

    • Inboard joint: female
    • Outboard joint: conventional
    • Joint boots: neoprene, inboard and outboard
    • Axle nut locking: stake
    • ABS tone ring: not included
    • Condition: new
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One front right CV axle shaft and one axle nut. This listing is one axle; the front right takes one, and the front left axle is a separate part ordered separately.

    Interchange: 66-4268 · 60-4268 · HO-8-8089 · HO-8-8665
    189417 · NCV36011 · 91258 · 40721128 · 44305TK6A00 · 44305TK6A01 · 44305TK6A10 · 44305TK6A11

    This part cross-references / interchanges with the following part numbers:

    189417, 66-4268, 60-4268, NCV36011, 91258, 40721128, HO-8-8089, HO-8-8665, 44305TK6A00, 44305TK6A01, 44305TK6A10, 44305TK6A11, HO-8417

    Frequently Asked Questions

    Is this a 2009 Honda Fit CV axle replacement for the front right side?

    Yes. TrakMotive HO-8417 is a front right CV axle shaft listed for the 2009-2014 Honda Fit, which includes the 2009 model year.

    Does this TrakMotive CV axle shaft come with the axle nut?

    Yes. TrakMotive HO-8417 includes the axle nut, which has an M22x1.5 thread, a 32 mm hex and stake locking.

    Does this CV axle include an ABS tone ring?

    No. The ABS tone ring is not included with this front right CV axle.

    Is 44305TK6A00 an interchange number for this axle?

    Yes. 44305TK6A00 is one of the numbers this part replaces, along with 66-4268 and NCV36011.

    How long is this CV axle?

    This CV axle's overall compressed length is 569 mm (22.4 in). The inboard end has 27-2T splines and the outboard end has 26 splines.
