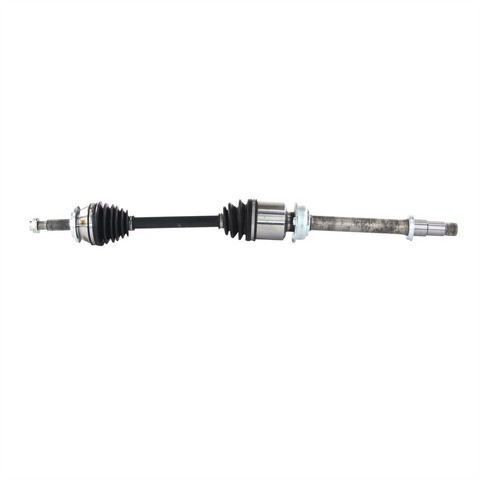

TrakMotive TO-8417 front right CV axle shaft for the 2011-2016 Scion tC sends drive torque to the front right wheel. This TrakMotive CV axle is Premium grade.
A clicking noise on turns, grease thrown from a torn boot or vibration under load can mean the axle is wearing. These signs alone do not prove this axle is the problem, since a worn wheel bearing can make a similar noise.
It fits the 2011-2016 Scion tC, and each side of the front axle takes one. This listing is the front right axle; the front left is a separate part, and the other side of that axle is normally done at the same time.
Fit and size
Build and materials
One front right CV axle shaft with its axle nut. The ABS tone ring is not included.
Interchange: 66-5415
NCV69126 · TO10589ER
This part cross-references / interchanges with the following part numbers:
Is TrakMotive TO-8417 a CV axle for the 2011-2016 Scion tC?
Yes. TrakMotive TO-8417 is the front right CV axle shaft for the 2011-2016 Scion tC. The front left side takes its own axle.
Does the TrakMotive CV axle shaft come with the axle nut?
Yes. The axle nut is included: an M22x1.5 nut with a 32 mm hex and stake locking. The ABS tone ring is not included.
How many splines does TrakMotive TO-8417 have at each end?
The inboard end has 24 splines and the outboard end has 26. Overall compressed length is 962 mm (37.87 in), which helps when comparing it with the old axle.
What can a clicking noise when turning mean on a front CV axle?
Clicking on turns, grease around a torn boot or vibration under load can mean the joint is wearing. A shop can inspect the axle and test it to find the cause.
Does TrakMotive TO-8417 replace NCV69126?
Yes. NCV69126 is one of the other-brand numbers this TrakMotive TO-8417 axle replaces. The full cross-reference sits on the Interchange line.
