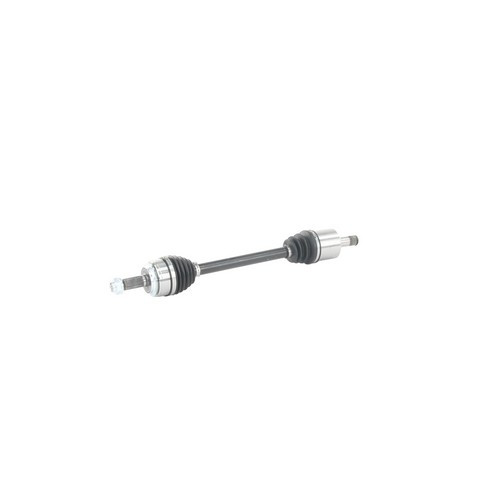

TrakMotive HO-86015 front left CV axle shaft for the 2007-2010 Honda Element carries drive torque from the transmission to the front left wheel. This TrakMotive CV axle flexes with the suspension so the wheel keeps turning as it moves and steers.
A clicking noise on turns, vibration under acceleration or a torn boot with grease thrown around the joint can mean a CV axle is wearing out. Those signs can have other causes, so with the engine off, look over the boots for cracks or tears and rule out other worn parts before you replace the shaft.
This is a CV axle shaft for the 2007-2010 Honda Element. It is the front left shaft; the front right shaft on the same axle is a separate part and is normally done at the same time. Each side of the axle takes one. ABS axles fit non-ABS applications unless otherwise noted.
Fit and size
Build and materials
One CV axle shaft. The axle nut and the ABS tone ring are not included.
This part cross-references / interchanges with the following part numbers:
Is the HO-86015 front left axle the right one for the 2007-2010 Honda Element?
Yes, TrakMotive HO-86015 is the front left CV axle shaft for the 2007-2010 Honda Element; the right side of that axle takes its own separate shaft.
Does the TrakMotive CV axle shaft come with the axle nut?
No. TrakMotive HO-86015 is the shaft only; the axle nut (36 mm hex, 23 mm high) and the ABS tone ring are not included.
How long is this front left CV axle from end to end?
Overall length is 677 mm (26.625 in) compressed and 729 mm (28.69 in) extended.
How can I tell if the boot on a front left CV axle is damaged?
With the engine off, look for cracks, tears or grease thrown around the joint. On this shaft the inboard boot is neoprene and the outboard boot is thermoplastic.
What warranty comes with the HO-86015 CV axle?
TrakMotive covers HO-86015 with a limited lifetime warranty.
