Front Right CV Axle Shaft for 2019-2022 Toyota RAV4 - TrakMotive TO-86015

$189.99

TrakMotive CV Axle Shaft TO-86015 - view 2

TrakMotive CV Axle Shaft TO-86015 - view 3

$189.99

Current Stock: 8

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Part number: TO-86015

Part Has Core (Y/N): N

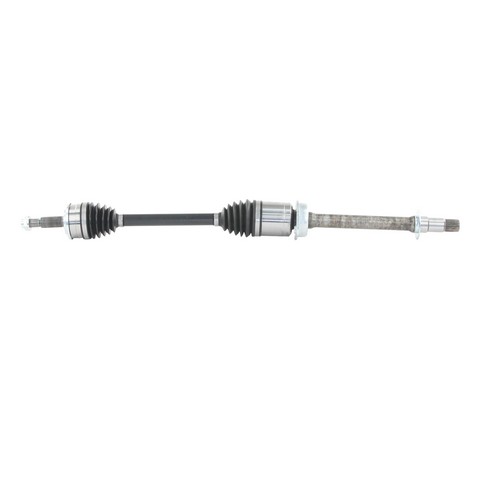

TrakMotive CV Axle Shaft P/N:TO-86015

$189.99

Description

TrakMotive TO-86015 front right CV axle shaft for the 2019-2022 Toyota RAV4 carries drive torque to the wheel and flexes with the suspension and steering. Use this TrakMotive CV axle when the old front right shaft has worn joints or a torn boot.

Long-male inboard joint with 24 splines
Conventional outboard joint with 26 splines
Axle nut thread size M22x1.5 with a 32 mm hex size
Overall length of 991 mm (39 in) compressed and 1047 mm (41.19 in) extended

Quick facts

Part: TrakMotive TO-86015 CV axle shaft
Fits: 2019-2022 Toyota RAV4
Position: Front right
Condition: New

A clicking noise on turns, vibration under acceleration or grease thrown from a torn boot can mean a CV axle is wearing out. A worn wheel bearing, a damaged motor mount or a tire problem can produce similar symptoms, so find the cause before buying. This listing is one axle for the front right; the front left is a separate part.

Fits

This axle is a direct-fit replacement for the 2019-2022 Toyota RAV4.

Specifications

Fit and size

Position: front right
Quantity per vehicle: 1
Overall compressed length: 991 mm (39 in)
Overall extended length: 1047 mm (41.19 in)
Inboard splines: 24
Outboard splines: 26
Axle nut thread size: M22x1.5
Axle nut hex and socket size: 32 mm
Axle nut height: 20 mm

Build and materials

Inboard joint type: long-male
Outboard joint type: conventional
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft for the front right; the vehicle takes one on this side, and the front left is ordered separately. The axle nut and ABS tone ring are not included, so plan on a new nut.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

TO-86015

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive TO-86015 fit the 2019-2022 Toyota RAV4?

Yes. TrakMotive TO-86015 is the front right CV axle shaft for the 2019-2022 Toyota RAV4, and that side takes one.

Does this TrakMotive CV axle shaft come with the axle nut?

No. The axle nut is not included, so plan on a new one. The nut thread is M22x1.5 with a 32 mm hex size.

How many splines does the TO-86015 axle have at each end?

TrakMotive TO-86015 has 24 splines on its long-male inboard joint and 26 splines on its conventional outboard joint.

Can a torn boot on a CV axle mean the shaft needs replacing?

Yes. A torn boot that throws grease can mean the joint is wearing, and so can clicking on turns. Have it checked or replaced promptly rather than driving on it.

How long is the TrakMotive TO-86015 axle shaft?

TrakMotive TO-86015 measures 991 mm (39 in) compressed and 1047 mm (41.19 in) extended.
