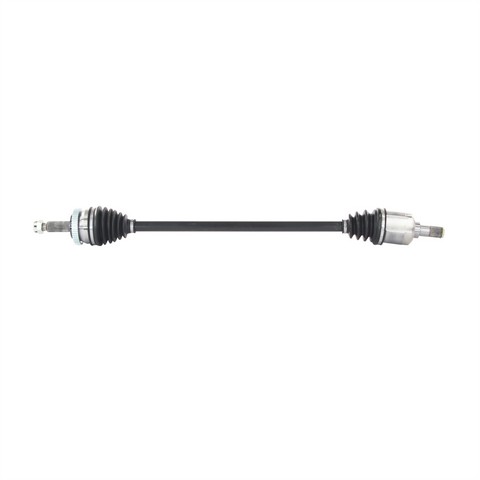

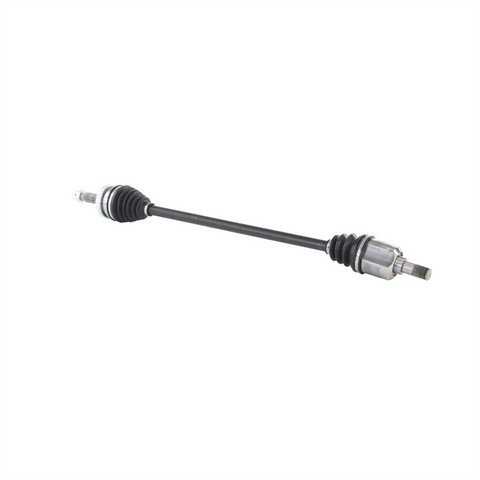

TrakMotive HY-8101 front right CV axle shaft for the 2006-2008 Hyundai Sonata carries drive torque to the front right wheel. The joints of the TrakMotive CV axle let the wheel move with the suspension, and the shaft replaces one with a worn joint or a torn boot.
- Toothed ABS tone ring with 47 teeth included
- Neoprene boots on the inboard and outboard joints
- Axle nut included, with cotter pin locking type
- 27 splines at the inboard end and 27 at the outboard end
Quick facts
- Part: TrakMotive HY-8101 CV axle shaft
- Fits: 2006-2008 Hyundai Sonata
- Position: Front right
- Condition: New
A clicking or popping noise on turns, vibration while driving, or grease thrown from a split boot can mean the CV axle is worn. A worn wheel bearing, a damaged tire or a loose suspension part can be behind these signs too, so find the cause before buying a new axle.
Fits
It is a direct-fit CV axle replacement for the 2006-2008 Hyundai Sonata. The 2006-2008 Hyundai Sonata takes one axle on the front right. This listing is that one axle; the front left is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Overall compressed length: 968 mm (38.11 in)
- Inboard joint: male, 27 splines
- Outboard joint: conventional, 27 splines
- Axle nut thread: M22x1.5
- Axle nut hex size: 30 mm (1.17 in)
Build and materials
- Condition: New
- Joint boots: neoprene, inboard and outboard
- ABS tone ring: included, toothed, 47 teeth
- Axle nut locking: cotter pin
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One front right CV axle shaft with its axle nut.
Interchange: 66-3490 · HY-2276A · 80-9321 · HY-8-8591A · AX-88279
NCV37564 · 199101 · 37321 · 99321 · 40723042 · 495000A160 · 495003K160 · 5000A160 · 5003K160
This part cross-references / interchanges with the following part numbers:
NCV37564, 199101, 66-3490, HY-2276A, 80-9321, 37321, 99321, 40723042, HY-8-8591A, 495000A160, 495003K160, 5000A160, 5003K160, HY-8101, AX-88279
Frequently Asked Questions
Is this a CV axle replacement for a 2006 Hyundai Sonata (2006-2008 range)?
Yes. TrakMotive HY-8101 is the front right CV axle shaft for the 2006-2008 Hyundai Sonata, so a 2006 model is covered on the front right side.
Does this TrakMotive CV axle shaft come with the axle nut?
Yes. HY-8101 comes with its axle nut, an M22x1.5 nut with a 30 mm hex and cotter pin locking.
How long is this CV axle and how many splines does it have?
The overall compressed length is 968 mm (38.11 in). The shaft has 27 splines at the inboard end and 27 at the outboard end.
Does this axle include the ABS tone ring?
Yes. The toothed ABS tone ring is included and has 47 teeth.
Is the TrakMotive HY-8101 covered by a warranty?
Yes. TrakMotive backs this CV axle with a limited lifetime warranty.
