Front Left CV Axle Shaft for 2004-2008 Mitsubishi Galant & More - TrakMotive MI-8191

$112.99

TrakMotive CV Axle Shaft MI-8191 - view 2

TrakMotive CV Axle Shaft MI-8191 - view 3

TrakMotive CV Axle Shaft MI-8191 - view 4

TrakMotive CV Axle Shaft MI-8191 - view 5

Part number: MI-8191

UPC: 844084051912

Condition: New

Weight: 13.20 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$112.99

Current Stock: 11

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

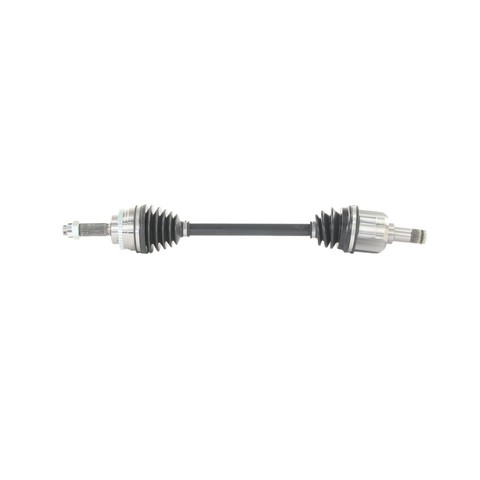

TrakMotive CV Axle Shaft P/N:MI-8191

$112.99

Description

TrakMotive MI-8191 front left CV axle shaft for the 2004-2008 Mitsubishi Galant and other vehicles sends engine torque to the wheel while the suspension moves. It replaces a worn or damaged axle shaft on the front left side.

Toothed ABS tone ring with 43 teeth included
Neoprene boots on both the inboard and outboard joints
Axle nut included, with M22x1.5 thread and cotter pin locking
27 inboard splines and 25 outboard splines
Male inboard joint and conventional outboard joint

Quick facts

Part: TrakMotive MI-8191 CV axle shaft
Fits: 2004-2008 Mitsubishi Galant and other vehicles
Position: Front left
Condition: New

A click on tight turns, vibration under acceleration or grease flung from a torn boot can mean the shaft is worn, though a worn wheel bearing or a failing tire can be behind similar symptoms. This listing is one shaft for the front left; the front right is a separate part, and the two sides are normally replaced together. The front left takes one.

Fits

This shaft fits the 2004-2008 Mitsubishi Galant and the 2006 Mitsubishi Lancer.

Specifications

Fit and size

Position: front left
Quantity per application: 1
Overall compressed length: 668 mm (26.3 in)
Inboard splines: 27
Outboard splines: 25
Axle nut thread: M22x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

Inboard joint: male
Outboard joint: conventional
Joint boots: neoprene, inboard and outboard
ABS tone ring: toothed, 43 teeth, included
Axle nut: included, cotter pin locking
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft, including the axle nut and the toothed ABS tone ring.

Interchange: 80-4128 · 66-3480 · 60-3480 · MI-8-8591A · AX-41119
239191 · NCV51593 · 89059 · 92722 · 95221 · MR580729

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

80-4128, 239191, 66-3480, 60-3480, NCV51593, 89059, 92722, 95221, MI-8-8591A, MR580729, MI-8191, AX-41119

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive CV axle MI-8191 the right front left shaft for a 2004-2008 Mitsubishi Galant?

Yes. TrakMotive MI-8191 is listed as a front left CV axle shaft for the 2004-2008 Mitsubishi Galant, and the model years are all you need to match.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. The axle nut is included, with an M22x1.5 thread, a 32 mm hex and a cotter pin locking type. The toothed ABS tone ring is included too.

How many splines does the MI-8191 axle shaft have?

TrakMotive MI-8191 has 27 inboard splines and 25 outboard splines. Its overall compressed length is 668 mm (26.3 in).

Does this front left axle shaft have an ABS tone ring?

Yes. It has a toothed ABS ring with 43 teeth. ABS axles fit non-ABS applications unless otherwise noted.

Is 80-4128 an interchange number for this axle shaft?

Yes. 80-4128 is listed as an interchange for TrakMotive MI-8191, along with the other numbers on the Interchange line.
