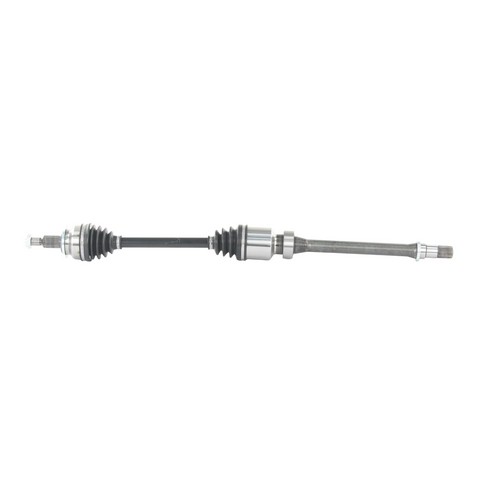

TrakMotive MZ-8226 front right CV axle shaft for the 2013-2016 Mazda CX-5 carries drive torque from the transmission to the wheel. The TrakMotive CV axle flexes through its two joints as the suspension moves and the wheel steers.
- Neoprene boots on the inboard and outboard joints
- Male inboard joint with 31 splines
- Conventional outboard joint with 31 splines
- Self-locking axle nut included
Quick facts
- Part: TrakMotive MZ-8226 CV axle shaft
- Fits: 2013-2016 Mazda CX-5
- Position: Front right
- Condition: New
Clicking in tight turns, vibration under acceleration, or a torn boot with grease thrown around the joint can mean the axle is worn. Before replacing it, inspect the boots for splits and grease spatter with the engine off, because noises like these can also come from other drivetrain or suspension parts.
Fits
This CV axle shaft is a direct-fit replacement for the 2013-2016 Mazda CX-5. Replacing the two front axles together is a common choice, but this listing is one shaft for the front right. The car takes one on each side, and the front left is ordered separately.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1 per side
- Overall compressed length: 1015 mm (39.96 in)
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm (1.25 in)
Build and materials
- Boot material: neoprene, inboard and outboard
- ABS tone ring: not included
- Condition: new
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft and one axle nut.
Interchange: NCV48037 · 40732098 · FTB12550X · FTB12550XA · MZ10542ER
This part cross-references / interchanges with the following part numbers:
NCV48037, 40732098, FTB12550X, FTB12550XA, MZ10542ER, MZ-8226
Frequently Asked Questions
Does the TrakMotive MZ-8226 front right CV axle shaft fit the 2013-2016 Mazda CX-5?
Yes. TrakMotive MZ-8226 is the front right CV axle shaft for the 2013-2016 Mazda CX-5. The front left side is a separate part.
Does this front right CV axle shaft come with the axle nut?
Yes. The axle nut is included: a self-locking nut with M22x1.5 thread and a 32 mm hex.
How long is the TrakMotive CV axle shaft and how many splines does it have?
TrakMotive MZ-8226 measures 1015 mm (39.96 in) compressed. The inboard male joint and the outboard joint each have 31 splines.
Is an ABS tone ring included with this CV axle shaft?
No. The ABS tone ring is not included with this axle, so it is a separate part.
Does the TrakMotive MZ-8226 replace NCV48037?
Yes. NCV48037 is one of the other numbers TrakMotive MZ-8226 replaces.
