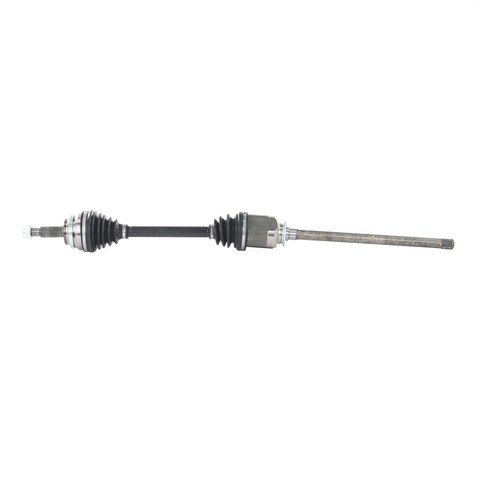

TrakMotive CV Axle Shaft P/N:TO-8153

Be the first to review this product
$116.99
MPN: TO-8153
UPC: 844084081537
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
TrakMotive CV Axle Shaft P/N:TO-8153
TrakMotive CV Axle Shaft P/N:TO-8153
$116.99

Keep torque flowing from the transaxle to the wheel with the TrakMotive CV Axle Shaft TO-8153, a Premium-grade complete axle assembly that drops in as a direct-fit replacement for the 2001-2007 Toyota Highlander [All engines]. The CV joints transmit power to the wheel while accommodating suspension travel and steering angle, so if a worn or leaking original axle is the source of clicking on turns or vibration, this assembly replaces it.

  • Complete assembly: conventional outboard joint with a 26-spline outboard connection and a male inboard joint with 23 inboard splines.
  • ABS ready: includes a toothed ABS tone ring with a 48-tooth count; per TrakMotive, ABS axles fit non-ABS applications unless otherwise noted.
  • Sealed joints: neoprene inboard and outboard boots protect the joints, with an overall compressed length of 39.44 in (1002 mm).
  • Hardware included: a stake-type axle nut (M22x1.5 thread, 32 mm / 1.25 in hex) is supplied.

Backed by TrakMotive's Limited Lifetime Warranty and built by an ISO 9001:2008 and TS 16949:2009 certified company. Country of origin: China.

Interchange: Manufacturer part number TO-8153.

This part cross-references / interchanges with the following part numbers:

NCV69598, 652470, 40-19765, 80-5675, 80-5676, 329153, 66-5249, 60-5249, TO-2206A, 80-6252, CV2241, 90118, 95676, 40751096, CV8997, TO-8-8690A, 4341048050, TO10523, MX-19760S, TO-8153, 7097609, AX-97619

Frequently Asked Questions

What vehicle does this CV axle shaft fit?

It is a direct-fit replacement for the 2001-2007 Toyota Highlander (all engines). Check the Buyer's Guide tab to confirm fitment for your vehicle.

Is the axle nut included?

Yes. A stake-type axle nut is supplied, with an M22x1.5 thread and a 32 mm (1.25 in) hex.

Does this axle work with ABS?

Yes. It includes a toothed ABS tone ring with a 48-tooth count. Per TrakMotive, ABS axles fit non-ABS applications unless otherwise noted.

What are the spline counts?

The inboard joint is male with 23 splines, and the conventional outboard joint has 26 splines.

What are common signs this axle may need replacing?

Clicking or popping during turns, a clunk on acceleration, vibration at speed, or grease thrown from a torn CV boot can indicate a worn axle.
