Front Left CV Axle Shaft for 2013-2017 Lexus LS460 - TrakMotive TO-86083

$159.99

TrakMotive CV Axle Shaft TO-86083 - view 2

TrakMotive CV Axle Shaft TO-86083 - view 3

TrakMotive CV Axle Shaft TO-86083 - view 4

Part number: TO-86083

UPC: 840140515084

Condition: New

Weight: 18.40 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$159.99

Current Stock: 8

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

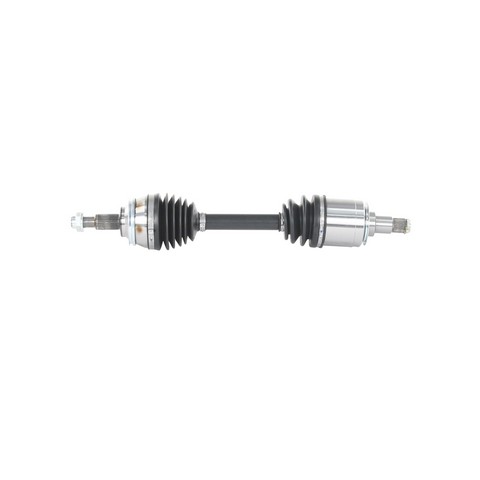

TrakMotive CV Axle Shaft P/N:TO-86083

$159.99

Description

TrakMotive TO-86083 front left CV axle shaft for the 2013-2017 Lexus LS460 carries drive torque to the wheel. Its CV joints let the shaft keep turning as the suspension moves and the wheel steers.

Male inboard joint with 27 splines
Conventional outboard joint with 30 splines
No bolt holes at either joint and no joint bolts on the shaft

Quick facts

Part: TrakMotive TO-86083 CV axle shaft
Fits: 2013-2017 Lexus LS460
Position: Front left
Condition: New

A clicking sound on turns, vibration under acceleration or grease thrown from a torn boot can mean the axle is worn. With the engine off, look for a split boot and grease spatter inside the wheel well before replacing it, since a worn wheel bearing or suspension part can make noise of its own.

Fits

This TrakMotive CV axle shaft fits the 2013-2017 Lexus LS460, which takes one on the front left. This listing is one shaft; the front right is a separate part, and both sides are normally replaced together.

Specifications

Fit and size

Position: front left
Quantity per vehicle: 1
Overall compressed length: 607 mm (23.88 in)
Overall extended length: 661 mm (26 in)
Axle nut thread: M24x1.5
Axle nut hex size: 32 mm (1.25 in); height 20 mm (0.79 in)

Build and materials

Grade type: Premium
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft. The axle nut and the ABS tone ring are not included; plan on a new axle nut, since the old one may not be reusable.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

TO-86083

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive TO-86083 fit the 2013-2017 Lexus LS460?

Yes. TrakMotive TO-86083 is a front left CV axle shaft for the 2013-2017 Lexus LS460, and that car takes one on this side.

Is the axle nut included with this TrakMotive CV axle?

No. TrakMotive TO-86083 is one CV axle shaft; the axle nut and ABS tone ring are not included. The nut thread is M24x1.5 with a 32 mm hex.

How many splines does this CV axle shaft have on each end?

The male inboard joint has 27 splines, and the conventional outboard joint has 30 splines.

What can a clicking noise on turns mean for a front CV axle shaft?

A clicking sound on turns, vibration under acceleration or grease thrown from a torn boot can mean the CV joint is worn.

What warranty comes with the TrakMotive TO-86083 CV axle shaft?

TrakMotive covers this CV axle shaft with its limited lifetime warranty.
