Front Right CV Axle Shaft for 2018-2022 Volkswagen Atlas & More - TrakMotive VW-86036

$186.99

TrakMotive CV Axle Shaft VW-86036 - view 2

TrakMotive CV Axle Shaft VW-86036 - view 3

TrakMotive CV Axle Shaft VW-86036 - view 4

TrakMotive CV Axle Shaft VW-86036 - view 5

TrakMotive CV Axle Shaft VW-86036 - view 6

Part number: VW-86036

UPC: 840140511321

Condition: New

Weight: 24.20 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$186.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

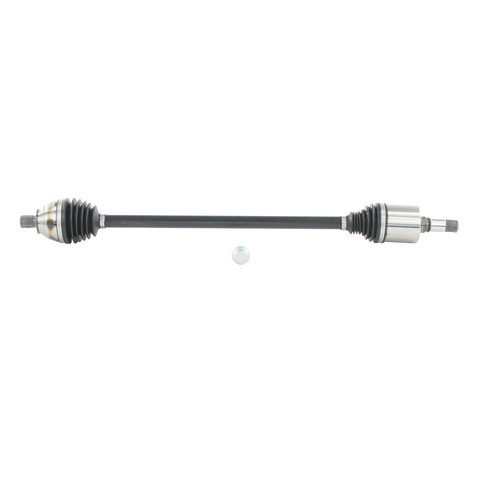

TrakMotive CV Axle Shaft P/N:VW-86036

$186.99

Description

TrakMotive VW-86036 front right CV axle shaft for the 2018-2022 Volkswagen Atlas and other vehicles sends drive torque to the wheel. Its joints let the wheel steer and move with the suspension while the shaft keeps turning.

Male inboard joint with 37 splines
Outboard joint with 38 splines and a spline bolt
Axle bolt size: M16x1.5 thread, 86 mm long, 27 mm hex
Overall length of 995 mm compressed and 1056 mm extended

Quick facts

Part: TrakMotive VW-86036 CV axle shaft
Fits: 2018-2022 Volkswagen Atlas and other vehicles
Position: Front right
Condition: New

Clicking on tight turns, vibration under acceleration or grease thrown from a torn boot can mean this shaft is worn, though a wheel bearing or a tire problem can make similar noise, so find the cause before you replace it.

Fits

It fits the 2018-2022 Volkswagen Atlas and the 2020-2022 Volkswagen Atlas Cross Sport, and each takes one on the front right. The front left shaft is a separate part and is ordered separately.

Specifications

Fit and size

Position: front right
Quantity per vehicle: 1
Overall compressed length: 995 mm (39.17 in)
Overall extended length: 1056 mm (41.56 in)
Splines: 37 inboard, 38 outboard
Axle bolt: M16x1.5 thread, 86 mm long, 27 mm hex

Build and materials

Inboard joint type: male
Outboard joint type: Audi style spline bolt
ABS tone ring: not included
Grade: Premium
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft. The axle nut is not included.

Interchange: NCV72188

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV72188, VW-86036

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive CV axle VW-86036 fit the 2018-2022 Volkswagen Atlas?

Yes. TrakMotive VW-86036 fits the 2018-2022 Volkswagen Atlas on the front right side; the front left takes its own shaft.

How long is this TrakMotive CV axle shaft?

This front right shaft measures 995 mm (39.17 in) compressed and 1056 mm (41.56 in) extended.

Does this front right CV axle shaft come with the axle nut?

No. TrakMotive VW-86036 does not include the axle nut, and the ABS tone ring is not included either.

How many splines does the VW-86036 axle shaft have?

The inboard end is a male joint with 37 splines. The outboard end has 38 splines and an Audi style spline bolt.

Is NCV72188 a cross-reference for this front right axle shaft?

Yes. NCV72188 is listed as an interchange number for TrakMotive VW-86036.

Reviews

No reviews yet — be the first to review this product.
