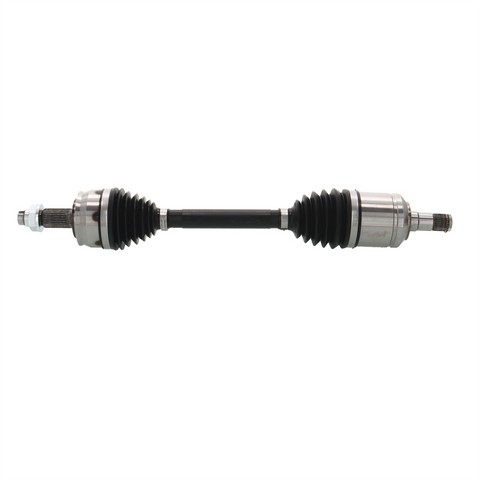

Front Left CV Axle Shaft for 2017-2022 Jeep Compass - TrakMotive CH-86036

TrakMotive CH-86036 front left CV axle shaft for the 2017-2022 Jeep Compass carries drive torque to the front left wheel. Its two joints let the wheel steer and move with the suspension while this TrakMotive CV axle keeps turning.

• Male inboard joint with 26 splines
• Conventional outboard joint with 27 splines
• Axle nut thread size M24x1.5 with a 36 mm hex size
• Overall compressed length of 24.25 in and extended length of 672 mm (26.44 in)

Quick facts

• Part: TrakMotive CH-86036 CV axle shaft
• Fits: 2017-2022 Jeep Compass
• Position: Front left
• Condition: New

A clicking or popping sound on turns, vibration, or grease thrown from a torn boot can mean a CV axle is worn. Before you replace this one, rule out a worn wheel bearing or loose suspension parts, since they can make similar noises.

Fits

This is a direct-fit replacement for the 2017-2022 Jeep Compass. This listing is one axle for the front left; the front right is a separate part, and the other side of that axle is normally done at the same time. Each side of the front axle takes one.

Specifications

In the box

One CV axle shaft. The axle nut is not included.
