Front CV Intermediate Shaft for 2019-2021 Genesis G70 & More - TrakMotive HY-3539

$102.99
TrakMotive CV Intermediate Shaft HY-3539
TrakMotive CV Intermediate Shaft HY-3539 - view 2
TrakMotive CV Intermediate Shaft HY-3539 - view 3
TrakMotive CV Intermediate Shaft HY-3539 - view 4
TrakMotive CV Intermediate Shaft HY-3539 - view 5
TrakMotive CV Intermediate Shaft HY-3539 - view 6
TrakMotive CV Intermediate Shaft HY-3539
TrakMotive CV Intermediate Shaft HY-3539 - view 2
TrakMotive CV Intermediate Shaft HY-3539 - view 3
TrakMotive CV Intermediate Shaft HY-3539 - view 4
TrakMotive CV Intermediate Shaft HY-3539 - view 5
TrakMotive CV Intermediate Shaft HY-3539 - view 6

Vehicles this part fits
    Part number: HY-3539
    UPC: 840140520439
    Condition: New
    Weight: 9.40 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $102.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

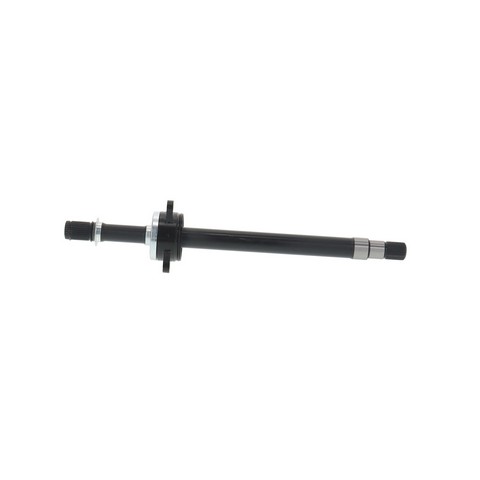

    TrakMotive CV Intermediate Shaft P/N:HY-3539
    TrakMotive CV Intermediate Shaft P/N:HY-3539
    $102.99
    $102.99

    TrakMotive HY-3539 front CV intermediate shaft for the 2019-2021 Genesis G70 and other vehicles carries drive torque to the front axle.

    • 27 splines on the inboard end and 28 on the outboard end
    • Overall compressed length of 518 mm (20.38 in)
    • Supplied new as an inner CV shaft

    Quick facts

    • Part: TrakMotive HY-3539 CV intermediate shaft
    • Fits: 2019-2021 Genesis G70 and other vehicles
    • Position: Front
    • Condition: New

    A knock or vibration from the front that changes with speed or acceleration can mean this shaft is worn, though the CV axle shaft or the wheel bearing on that side can be behind the same signs, so find the cause before replacing anything. Both front shafts are normally replaced together, and this listing is a single shaft.

    Fits

    This shaft fits the 2018-2020 Kia Stinger and the 2017 Genesis G90 along with the 2019-2021 Genesis G70. The 2019-2021 Genesis G70 takes two.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Overall compressed length: 518 mm (20.38 in)
    • Inboard splines: 27
    • Outboard splines: 28

    Build and materials

    • Type: inner CV shaft
    • Condition: new
    • ABS tone ring: not included
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV intermediate shaft. The axle nut is not included.

    This part cross-references / interchanges with the following part numbers:

    HY-3539

    Frequently Asked Questions

    Does the TrakMotive HY-3539 front CV intermediate shaft fit the 2018-2020 Kia Stinger?

    Yes. The TrakMotive HY-3539 is listed for the 2018-2020 Kia Stinger, and that car takes two of these shafts.

    Is the TrakMotive CV intermediate shaft sold singly or as a set?

    This listing is a single front shaft. Each car it fits takes two, so order the quantity your car needs.

    How many splines does the HY-3539 shaft have?

    The TrakMotive HY-3539 has 27 splines on the inboard end and 28 on the outboard end. Its overall compressed length is 518 mm (20.38 in).

    Does this CV intermediate shaft come with an axle nut or an ABS tone ring?

    No. Neither the axle nut nor the ABS tone ring is included; the listing is the shaft alone.

    What can a worn CV intermediate shaft feel like on the road?

    A knock, clunk or vibration from the front while accelerating can come with a worn shaft. A shop can test it to find the source.
