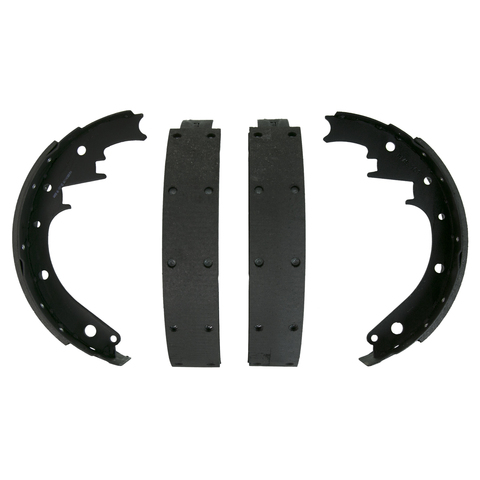

Press fresh friction against the drum with the Wagner Brake Drum Brake Shoe (Z10DR) — a drum brake shoe carries the bonded lining that the wheel cylinder forces outward against the brake drum to create the friction that slows the wheel. It's a direct-fit replacement for the listed classic applications, spanning the 1949-1951 Mercury, the 1956 Ford Park Lane Wagon, the 1960-1964 Dodge D100 Series, the 1961-1964 Ford F-100, and a long run of Jeep models including the CJ5, CJ6, CJ7, Commando, DJ5, Gladiator, Wagoneer and the J-100 through J-4800 series (see the Buyer's Guide tab for the full list). Fits front or rear drum-brake positions depending on the application.
- OE-matched friction: organic friction material, precision-ground to maximize friction-to-drum contact for consistent braking.
- Riveted lining: the friction material is riveted to the shoe.
- Sizing: built for an 11.000 in drum with a 2.000 in shoe width; primary lining 0.220 in, secondary lining 0.270 in thick (FMSI S10DR).
- Not included: mounting hardware is not included, and parking brake levers are not included.
Sold individually; for even, balanced braking it's best practice to replace both sides on the axle as a matched set. Country of origin: China.
Interchange: AXS10 · 10 · R10 · RAF10 · BS10R · AE10AR. Manufacturer part number Z10DR.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What does this drum brake shoe do?
It carries the friction lining that the wheel cylinder pushes outward against the brake drum to generate the friction that slows the wheel.
Does it come with mounting hardware or parking brake levers?
No. Mounting hardware and parking brake levers are not included; consult the vehicle service information for the correct hardware and whether any of it may be reused.
What is the friction material and how is it attached?
It uses an OE-matched organic friction material that is riveted to the shoe and precision-ground to maximize friction-to-drum contact.
What are the shoe's dimensions?
It is built for an 11.000 in brake drum with a 2.000 in shoe width; the primary lining is 0.220 in thick and the secondary lining is 0.270 in thick (FMSI S10DR).
Is it sold as a pair, and which vehicles does it fit?
It is sold individually; replacing both sides on the axle as a matched set is recommended. It fits many 1949-1978 Dodge, Ford, GMC, Jeep and Mercury models — see the Buyer's Guide tab for the full list.
