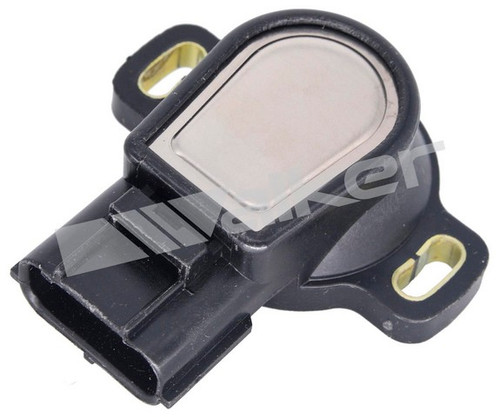

Walker Products 200-1177 throttle position sensor for the 1992-1996 Toyota Camry V6 3.0L and other vehicles sends throttle blade position to the ECM. The ECM uses that signal to control fuel delivery and ignition timing.
- Tested for signal integrity, temperature resistance and vibration durability
- Built to resist electromagnetic interference and challenging operating conditions
- Voltage signal the ECM reads for diagnostics; a malfunction can set an error code
- Data from the sensor can aid automatic transmission shifts
- Throttle body mounted and adjustable
Quick facts
- Part: Walker Products 200-1177 throttle position sensor
- Fits: 1992-1996 Toyota Camry V6 3.0L and other vehicles
- Material: Plastic
- Condition: New
Poor acceleration, a rough idle or stalling can mean this sensor is worn, though a dirty throttle body or worn spark plugs can be behind them too, so find the cause before replacing it.
Fits
This sensor is a direct-fit replacement for the 1992-1996 Toyota Camry V6 3.0L, the 1992-1996 Lexus ES300 V6 3.0L and the 1990-1992 Lexus LS400 V8 4.0L, built to OE-level standards for fit, form, function and performance. The 1992-1996 Toyota Camry V6 3.0L takes one, and this listing is one sensor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 4
- Connector quantity: 1
- Connector shape: Rectangle
Build and materials
- Material: Plastic
- Terminal type: Blade
- Terminal gender: Male
- Connector gender: Female
- Condition: New
- Country of origin: China
In the box
One throttle position sensor. A mounting bracket and mounting hardware are not included, so plan on new mounting hardware, since the old pieces may not be reusable.
Interchange: 5S5172 · EC3156 · 8945232060 · TH0142 · TH370 · 14146 · TPS406
This part cross-references / interchanges with the following part numbers:
5S5172, EC3156, 8945232060, TH0142, TH370, 14146, TPS406
Frequently Asked Questions
Is this the throttle position sensor for a 1992-1996 Toyota Camry V6 3.0L?
Yes. Walker Products 200-1177 is listed for the 1992-1996 Toyota Camry V6 3.0L, and that engine takes one sensor.
Does the 1990-1992 Lexus LS400 V8 4.0L take this throttle position sensor?
Yes. Walker Products 200-1177 is listed for the 1990-1992 Lexus LS400 V8 4.0L, with one sensor per vehicle.
Do I need to buy a mounting bracket separately for this throttle position sensor?
Yes. The box holds the sensor only; a mounting bracket and mounting hardware are not included, so plan on new hardware.

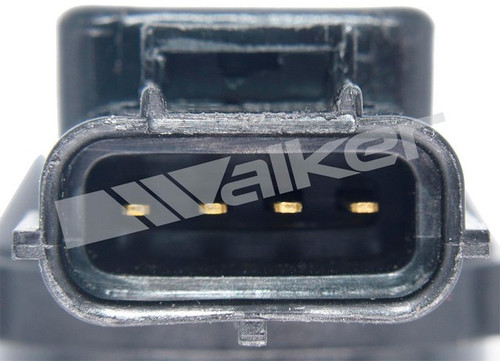

How many terminals does the 200-1177 connector have?
The connector is one rectangular female housing with four male blade terminals.
Can a failing throttle position sensor affect automatic transmission shifts?
Yes, it can. The sensor's data can aid automatic transmission shifting, and a faulty one can set an error code, which a shop can read to narrow down the cause.
