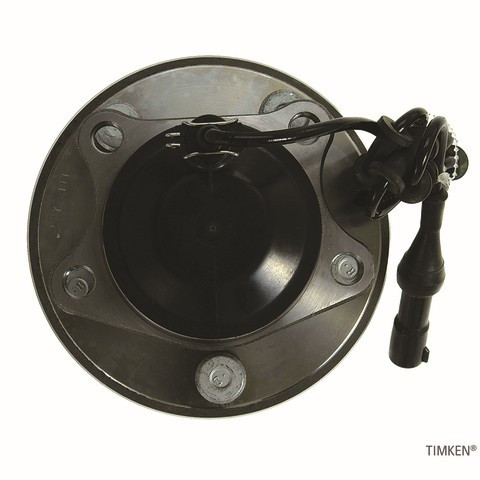

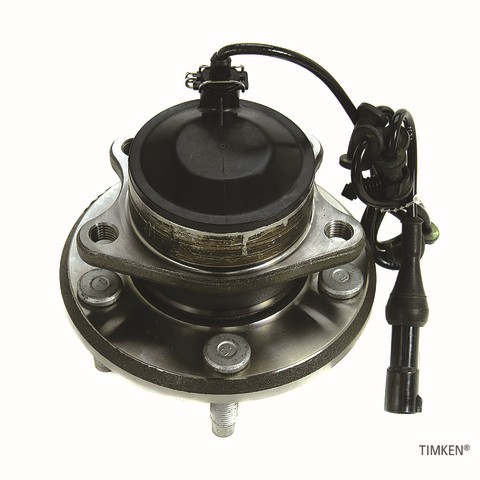

Timken HA590224 front wheel bearing and hub assembly for the 2005-2009 Jaguar Super V8 and other vehicles lets the front wheel turn freely. As a Timken wheel bearing, it arrives preset, pre-greased and pre-sealed.
- Tests control the design, materials and process used to make the hub bearing assemblies
- Low runout reduces noise and vibration and improves braking performance
- Seals have a reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and vent holes to prevent installation damage
- Bearings have precision profiles, uniform internal geometry and enhanced surface finishes to increase load carrying capacity and extend bearing life
- ABS sensor is 100% tested to monitor wheel speed for the anti-lock braking system
Quick facts
- Part: Timken HA590224 wheel bearing and hub assembly
- Fits: 2005-2009 Jaguar Super V8 and other vehicles
- Position: Front
- Condition: New
A humming or growling noise that rises with speed, vibration through the car or an ABS warning light can mean a bearing is wearing. Tires and brake parts can sound similar, so look those over with the engine off before you blame the bearing.
Fits
This front wheel bearing and hub assembly fits the 2005-2009 Jaguar Super V8, the 2009 Jaguar XF and the 2000-2008 Jaguar S-Type, and many other vehicles. If your car is not named here, look it up in the "Vehicles it fits" section. This listing is one hub; the other side of the front axle takes its own and is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Drive type: Non-driven
- Bolt circle diameter: 107.95 mm (4.250 in)
- Wheel studs: 5
- Flange bolt holes: 4
- Flange diameter: 139.10 mm (5.476 in)
- Flange offset: 44.50 mm (1.752 in)
- Hub pilot diameter: 76.00 mm (2.992 in)
- Brake pilot diameter: 71.00 mm (2.795 in)
- Wheel pilot diameter: 63.50 mm (2.500 in)
Build and materials
- Type: preset, pre-greased and pre-sealed hub unit
- ABS sensor: 100% tested to monitor wheel speed
- Condition: New
In the box
One front wheel bearing and hub assembly. The vehicles take two in total, one per side.
Interchange: 407.20000 · 407.61003
513167 · BR930213 · BR930244
This part cross-references / interchanges with the following part numbers:
407.20000, 407.61003, 513167, BR930213, BR930244
Frequently Asked Questions
Is this one of the Timken front wheel bearings that fits the 2009 Jaguar XF?
Yes. Timken HA590224 is a front wheel bearing and hub assembly listed for the 2009 Jaguar XF, and it is sold one per listing.
What are the bolt circle and pilot sizes on these Timken wheel hubs?
The bolt circle is 107.95 mm (4.250 in). The wheel pilot is 63.50 mm, the hub pilot 76.00 mm and the brake pilot 71.00 mm.
What are the signs that Timken hub bearings are wearing out?
A humming or growling noise that changes with speed, vibration or an ABS warning light can point to a worn bearing. Have it inspected promptly rather than driving on it.
Is the Timken wheel bearing and hub assembly HA590224 preset and pre-greased?
Yes. Timken HA590224 comes preset, pre-greased and pre-sealed. Its seals have vent holes to prevent installation damage.
Does HA590224 cross-reference to 513167?
Yes. 513167 is one of the numbers this Timken front wheel bearing and hub assembly replaces. BR930213 and 407.20000 are also on its Interchange line.
