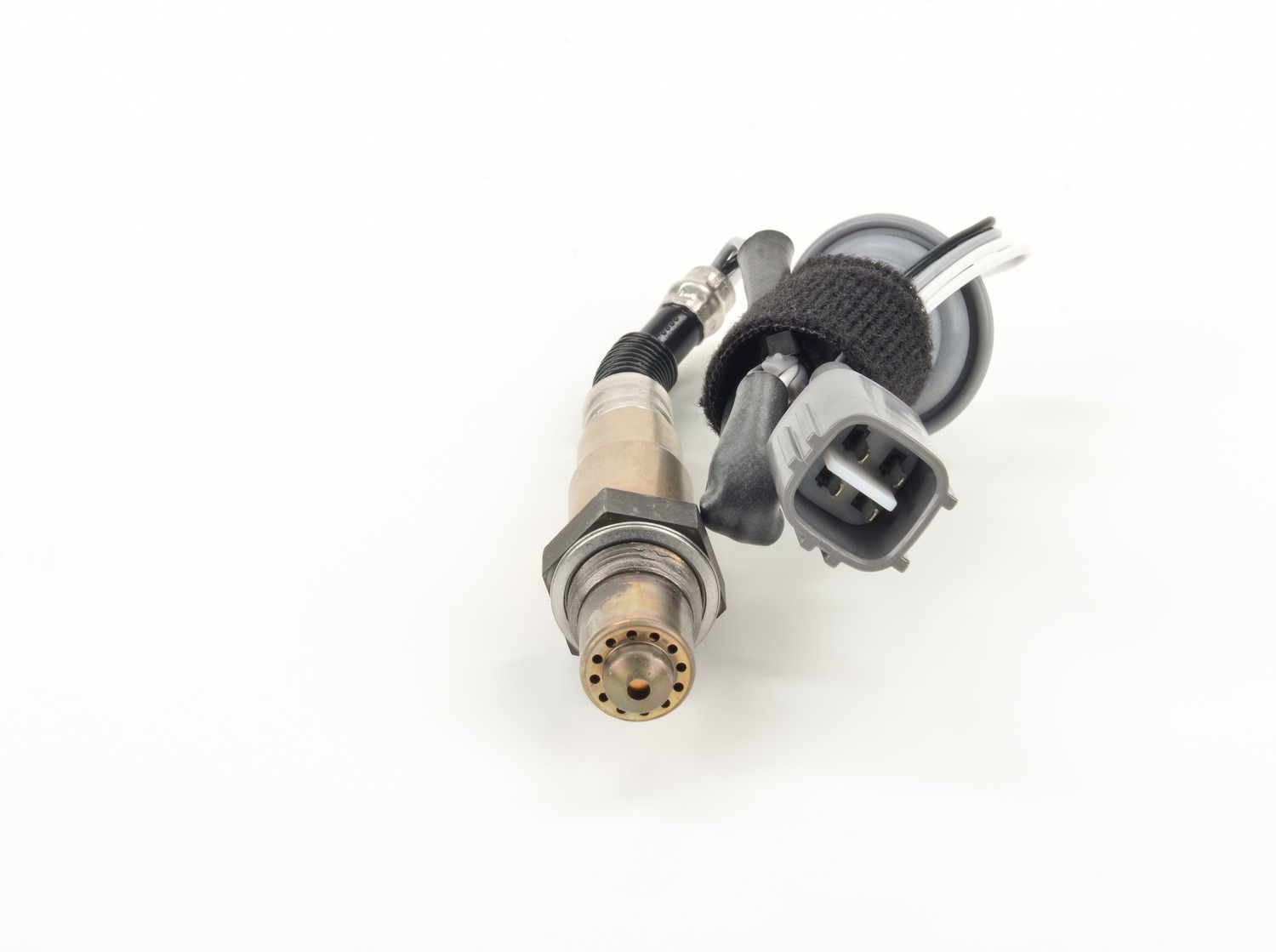

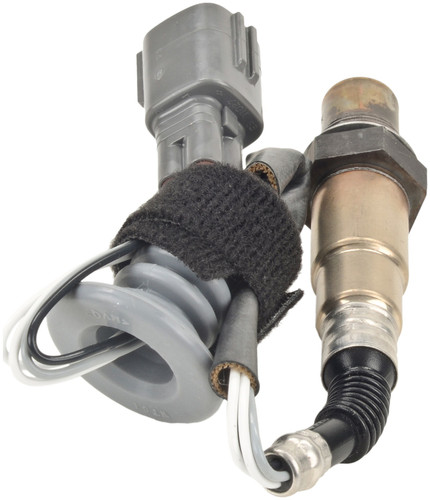

Bosch 13056 oxygen sensor for the 1995-2002 Toyota Corolla 4-cylinder 1.8L, the 1996-1997 Corolla 4-cylinder 1.6L and other vehicles sends air-fuel-ratio measurements to the ECU for combustion control. This is a downstream, heated narrow-band sensor, sold individually.
- Switching-Type narrow-band design with ceramic elements and optimized heater control
- Metal housing with an integrated heater element and TSP coating against vibration, corrosion and contamination
- Built for exhaust streams up to 1,880°F
- Reaches operating temperature in under 10 seconds for quick closed-loop control
Quick facts
- Part: Bosch 13056 oxygen sensor
- Fits: 1995-2002 Toyota Corolla 4-cylinder 1.8L, the 1996-1997 Corolla 4-cylinder 1.6L and other vehicles
- Position: Downstream
- Material: Metal housing
- Condition: New
A worn oxygen sensor can show up as a rough idle, weaker fuel economy or a check engine light, though an exhaust leak or a wiring fault can look similar. With the engine off and cool, look over the harness and connector for melted insulation or damage before you replace the sensor. The downstream position takes a single sensor, and this listing is one.
Fits
This oxygen sensor is listed for a wide range of Toyota, Chevrolet and Geo models, including the 1995-1997 Toyota Avalon V6 3.0L and the 1998-2002 Chevrolet Prizm 4-cylinder 1.8L. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Downstream
- Quantity per vehicle: 1
- Mounting type: Threaded, M18 - 1.5
- Hex size: 22 mm
- Length, sealing surface to end of connector: 15 in
- Overall length: 16.1 in
- Wiring harness length: 12.8 in
- Connector: rectangle, male, 4 blade terminals, 4 wires
Build and materials
- Sensor type: narrow-band, heated
- Housing material: Metal
- Grade: Standard replacement
- Condition: New
- Bosch warranty: 1 year, unlimited mileage, for non-commercial passenger cars and light trucks
- Country of origin: United States
In the box
One oxygen sensor with its wiring harness. A mounting bracket is not included.
Installation notes
- Conductive anti-seize comes pre-applied to the threads.
- Direct-fit connectors are built for quick installation.
Frequently Asked Questions
Is this the right Toyota Corolla oxygen sensor for a 1996-1997 Corolla 4-cylinder 1.6L?
Yes. Bosch 13056 is listed for the 1996-1997 Toyota Corolla 4-cylinder 1.6L and the 1995-2002 Corolla 4-cylinder 1.8L, in the downstream position.
Is this the right O2 sensor for a 2001 Toyota Corolla 4-cylinder 1.8L?
Yes, the 1995-2002 Toyota Corolla 4-cylinder 1.8L, which includes 2001, is listed for this sensor, and it goes in the downstream position.
Is this Bosch O2 sensor heated, and how many wires does it have?
Yes. Bosch 13056 is a narrow-band heated sensor with four wires and a rectangular male connector with four blade terminals.
What comes with this oxygen sensor, and does it have anti-seize?
It comes with its wiring harness, and conductive anti-seize is pre-applied to the threads. A mounting bracket is not included.
Is this Bosch premium oxygen sensor made in the USA?
Yes, the country of origin for Bosch 13056 is the United States, and Bosch gives it a 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks.
