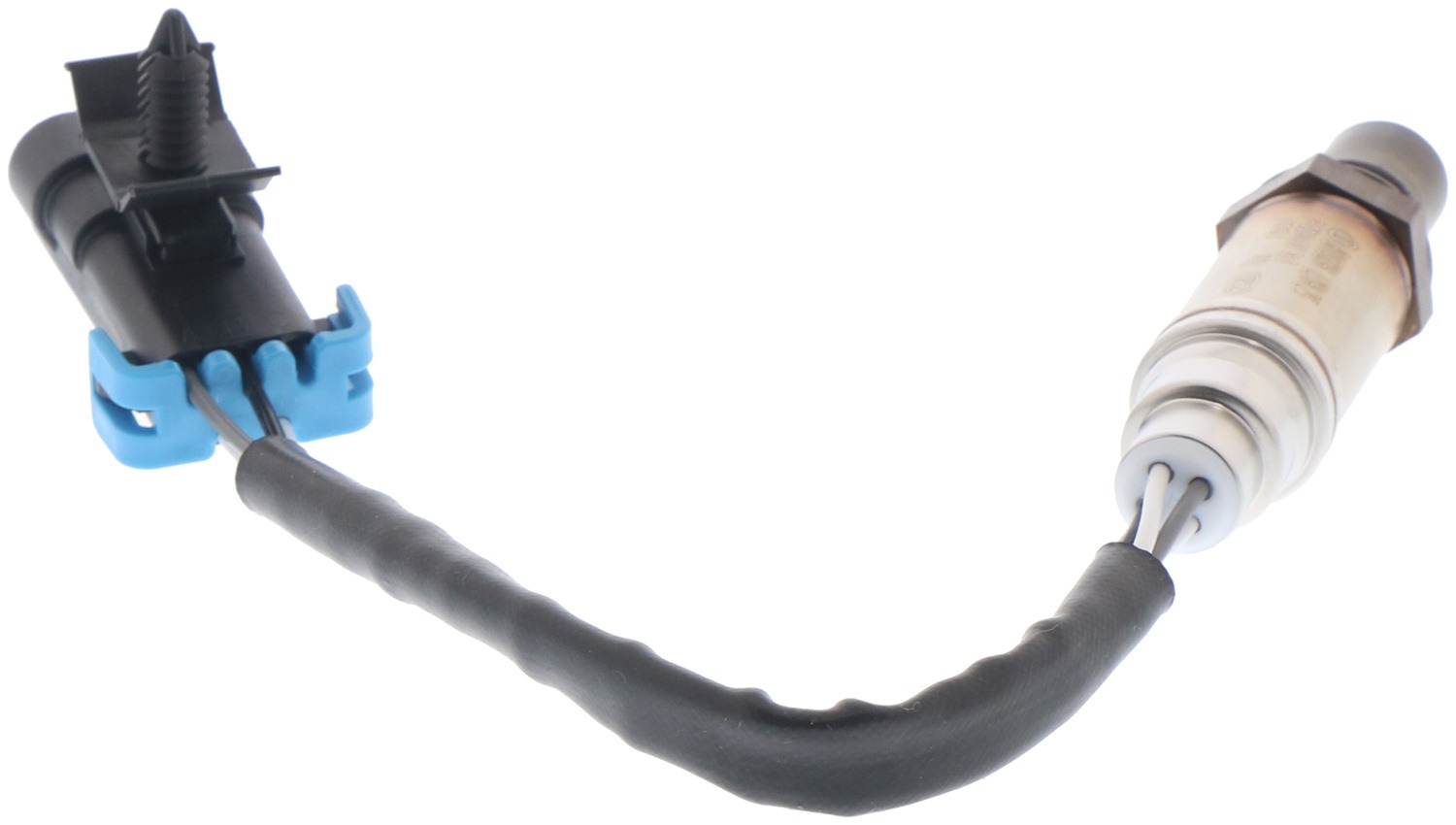

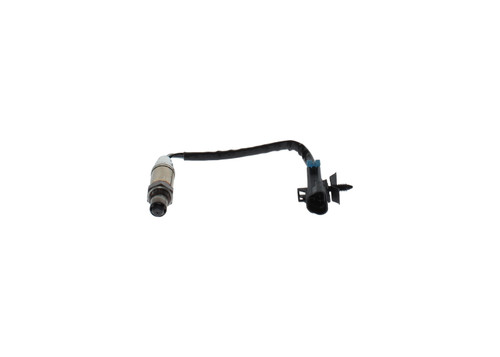

Bosch 15000 oxygen sensor for the 2005-2007 Chevrolet Corvette V8 6.0L, the 2006-2009 Corvette V8 7.0L, the 2008-2013 Corvette V8 6.2L and other vehicles reports the exhaust's air-fuel ratio to the ECU. This Bosch premium oxygen sensor helps the ECU keep combustion stable and emissions down across a wide range of operating conditions.
- Switching-type narrow-band design with advanced ceramic elements and optimized heater control
- Metal housing built to withstand exhaust streams up to 1,880°F
- Integrated heater element and TSP coating to resist vibration, corrosion and contamination
- Reaches operating temperature in under 10 seconds for quick closed-loop control and cold-start performance
Quick facts
- Part: Bosch 15000 oxygen sensor
- Fits: the 2005-2007 Chevrolet Corvette V8 6.0L, the 2006-2009 Corvette V8 7.0L, the 2008-2013 Corvette V8 6.2L and other vehicles
- Position: Upstream
- Material: Metal housing
- Condition: New
A failing oxygen sensor can show up as a check engine light, a rough idle or poorer fuel economy. Other faults can produce those signs too, so with the engine off and cool, look over the sensor wiring and connector for burned or damaged insulation before you replace it, since damaged wiring can also upset the signal.
Fits
It is a Chevrolet Corvette oxygen sensor for the 2005-2007 Corvette V8 6.0L, the 2006-2009 Corvette V8 7.0L and the 2008-2013 Corvette V8 6.2L, and it also fits the 2006-2007 Chevrolet HHR 4-cylinder 2.4L. This listing is one upstream sensor; a Corvette from any of those runs takes two, and the HHR takes one.
Specifications
Fit and size
- Position: Upstream
- Quantity per vehicle: 1 or 2, depending on the vehicle
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Length (sealing surface to end of connector): 11.4 in
Build and materials
- Sensor type: Narrow-band, heated
- Housing material: Metal
- Coating: TSP coating
- Condition: New
- Warranty: Bosch 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks
- Country of origin: United States
In the box
One oxygen sensor with its wiring harness. A mounting bracket and additional accessories are not included.
Installation notes
- Conductive anti-seize comes pre-applied to the threads.
- Direct-fit connectors are made for quick installation.
Frequently Asked Questions
Is this the Chevy HHR oxygen sensor for a 2006-2007 HHR 4-cylinder 2.4L?
Yes. Bosch 15000 fits the 2006-2007 Chevrolet HHR 4-cylinder 2.4L, which takes one sensor.
Is this Bosch O2 sensor heated?
Yes. Bosch 15000 is a heated narrow-band sensor with an integrated heater element, and it reaches operating temperature in under 10 seconds.
Does this oxygen sensor come with its wiring harness?
Yes. The listing is one sensor with its wiring harness. A mounting bracket and additional accessories are not included.
What thread size and hex size does the Bosch 15000 sensor have?
This sensor has an M18 - 1.5 thread and a 22 mm hex. It measures 11.4 in from the sealing surface to the end of the connector.
Is anti-seize already on the threads of this upstream oxygen sensor?
Yes. Conductive anti-seize is pre-applied to the threads, and the connectors are direct-fit for quick installation.
