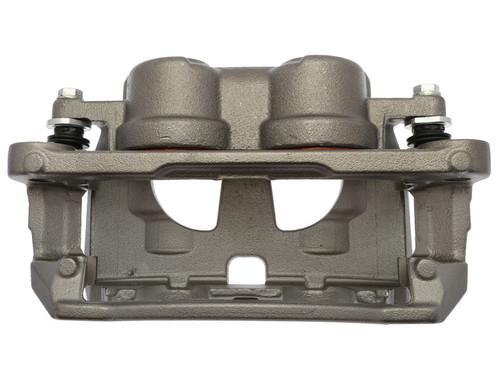

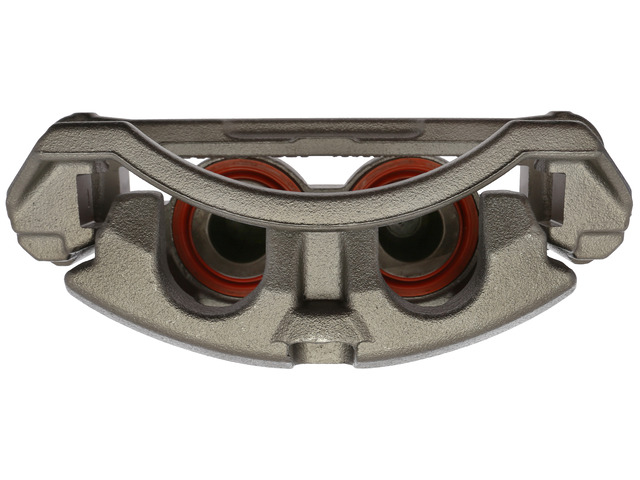

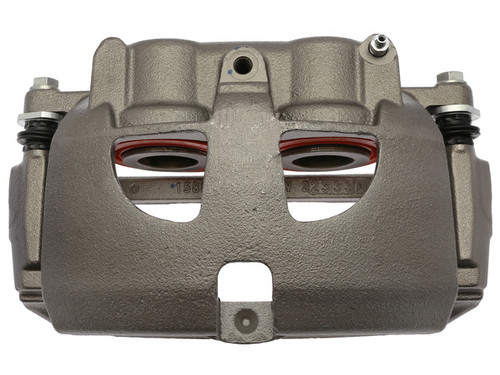

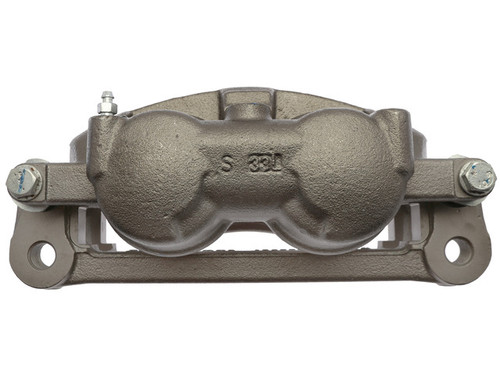

Raybestos Brakes FRC12275 front right brake caliper for the 2011-2018 Ram 2500 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured, semi-loaded unit, also called a disc brake caliper, comes as a caliper and bracket assembly.
- Raybestos R-Line non-plated caliper, remanufactured with all new seals, boots and bleeders
- Castings, guide pins and brackets are inspected before being reused
- New abutment hardware, banjo bolts and O-rings for leak-free operation
- EPDM70 rubber components for heat resistance and durability
- Silicone boots for heavy duty applications, where applicable
- 100% pressure tested
Quick facts
- Part: Raybestos Brakes FRC12275 brake caliper
- Also called: disc brake caliper
- Fits: 2011-2018 Ram 2500 and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
Pulling to one side, a wheel that drags or brake fluid around the caliper can mean this caliper is worn, though a collapsed brake hose or worn pads can be behind some of them, so sort out the cause first.
Fits
It is listed for a wide range of Ram and Dodge Ram models, including the 2011-2018 Ram 2500, the 2012 Ram 1500 and the 2009-2010 Dodge Ram 2500, and each takes one caliper at the front right. This listing is one caliper; the front left is a separate part, and the two sides of the front axle are normally done together.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston diameter: 59.9 mm (2.358 in)
- Bleeder screw thread: M10x1
- Bracket mounting hole: 16 mm, thread pitch 2.5 mm
Build and materials
- Type: Floating, semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Finish: Non-plated
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One semi-loaded caliper and bracket assembly.
Interchange: 18-B5172 · 99-17752A · 18-P5172 · 141.67061 · 142.67061 · 10-1309S
SC2046
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18-B5172, 99-17752A, 18-P5172, 141.67061, 142.67061, SC2046, 10-1309S
Frequently Asked Questions
Is the Raybestos Brakes FRC12275 a 2012 Ram 1500 brake caliper?
Yes, the 2012 Ram 1500 is listed for this front right caliper. If your vehicle is a different model or year, look it up in the "Vehicles it fits" section.
Can I use the FRC12275 as the 2011-2018 Ram 2500 brake caliper on the front right?
Yes. The Raybestos Brakes FRC12275 is listed for the front right of the 2011-2018 Ram 2500.
Does this caliper come with the bracket?
Yes. The Raybestos Brakes FRC12275 is a semi-loaded caliper and bracket assembly, so the bracket is part of this front right unit.
What is the piston diameter on this floating caliper?
The piston measures 59.9 mm (2.358 in). The bleeder screw thread is M10x1.
Which parts are new in this remanufactured caliper?
Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are all new. The castings, guide pins and brackets are inspected and then reused.
