Rear Brake Rotor for 2012-2022 Ford F-350 Super Duty & More - Raybestos 681018R

$117.99

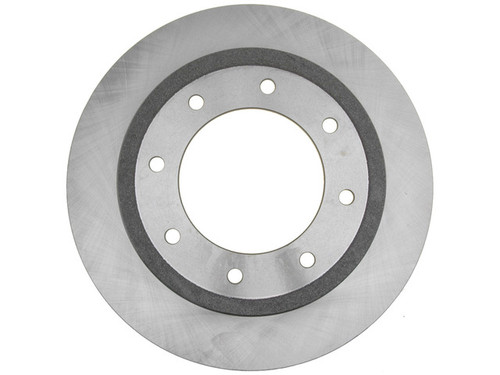

Raybestos Brakes Disc Brake Rotor 681018R

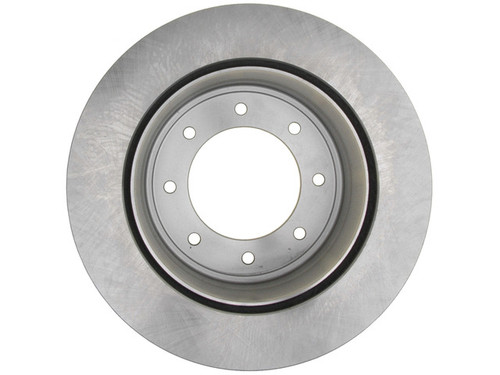

Raybestos Brakes Disc Brake Rotor 681018R - view 2

Raybestos Brakes Disc Brake Rotor 681018R - view 3

Part number: 681018R

UPC: 887213083750

Condition: New

Weight: 10.59 LBS

Item Package Quantity: 1

$117.99

Current Stock: 3

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

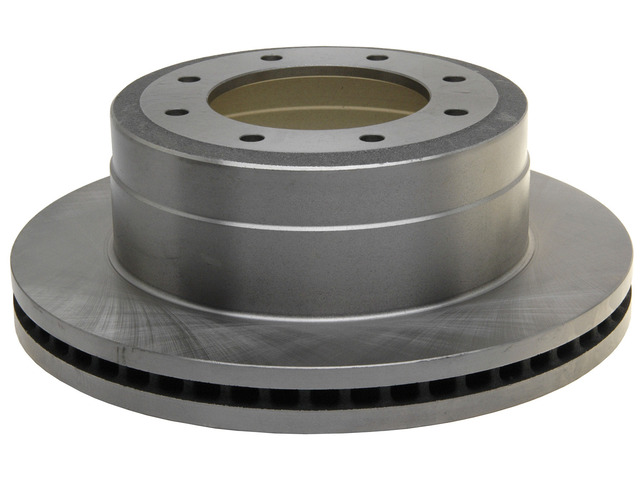

Raybestos Brakes Disc Brake Rotor P/N:681018R

$117.99

Description

Raybestos Brakes 681018R rear brake rotor for the 2012-2022 Ford F-350 Super Duty and other vehicles is the disc the pads grip to slow the vehicle. Also called a disc brake rotor, this R-Line rotor was developed from OE samples for OE fit, form and function.

Raybestos R-Line rotor, engineered for everyday driving conditions
Made with G3000-qualified material for dependable braking
Meets the SAE standard for tensile strength
Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
Mill-balanced edges, 100 percent validated, to minimize vibration for smoother stopping

Quick facts

Part: Raybestos Brakes 681018R brake rotor
Also called: disc brake rotor
Fits: 2012-2022 Ford F-350 Super Duty and other vehicles
Position: Rear
Material: Cast iron
Condition: New

Pedal pulsation, brake noise, or deep grooves or scoring on the rotor face can mean a rotor is worn. With the vehicle off and cool, measure the thickness during a brake service and compare it with the discard thickness in the specifications. Pulsation can also come from other brake parts, so find the cause before replacing the rotor. Rotors on one axle are normally changed as a pair, and this listing is one.

Fits

It fits the 2012-2022 Ford F-350 Super Duty and the 2013-2016 Ford F-450 Super Duty.

Specifications

Fit and size

Position: rear
Quantity per vehicle: 2
Outside diameter: 363 mm (14.291 in)
Inside diameter: 251 mm (9.882 in)
Center hole diameter: 128 mm (5.04 in)
Bolt circle: 156 mm, 8 lug holes
Bolt hole diameter: 13 mm (0.512 in)
Nominal thickness: 38 mm (1.496 in)
Discard thickness: 36 mm (1.417 in)
Overall height: 126.5 mm (4.98 in)

Build and materials

Type: vented, drum-in-hat
Surface: smooth, non-directional
Material: cast iron
ABS tone ring: not included
Condition: new
Country of origin: China

In the box

One rear brake rotor, without the ABS tone ring. The rear axle takes two rotors.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Does the Raybestos Brakes 681018R fit the 2013-2016 Ford F-450 Super Duty?

Yes. The Raybestos Brakes 681018R is a rear brake rotor for the 2013-2016 Ford F-450 Super Duty and the 2012-2022 Ford F-350 Super Duty.

Is the 681018R rotor vented or solid?

Vented. The Raybestos Brakes 681018R is a cast iron, drum-in-hat rotor with a smooth, non-directional surface.

What is the discard thickness for this rear rotor?

The discard thickness is 36 mm (1.417 in), and a new rotor measures 38 mm (1.496 in). A rotor worn down to the discard thickness is due for replacement.

What are the signs of a worn rear rotor?

Pedal pulsation, brake noise, deep grooves or scoring on the rotor face can mean the rotor is worn. A shop can measure runout and thickness to confirm.

Does this rotor come with an ABS tone ring?

No. The 681018R is the rotor only and does not include the ABS tone ring.
