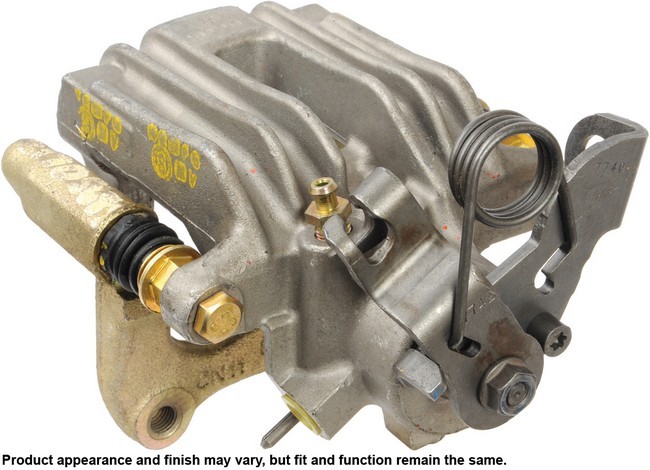

A1 CARDONE 19-B2890 rear right brake caliper for the 2002-2006 Audi A4 and other vehicles squeezes the pads against the rotor to slow the wheel. This remanufactured disc brake caliper is unloaded and comes with its bracket.
- Each A1 CARDONE brake caliper is remanufactured with new components and 100% pressure-tested
- Steel piston resists cracking and pitting and handles great loads
- Rubber seals are replaced with new high-temperature EPDM rubber
- Rust inhibitor treatment and a rust-resistant coating on the caliper
- New bleeder screw for trouble-free bleeding and a positive seal
- Plastic cap plug on every brake port thread
Quick facts
- Part: A1 CARDONE 19-B2890 brake caliper
- Also called: disc brake caliper
- Fits: 2002-2006 Audi A4 and other vehicles
- Position: Rear right
- Material: Aluminum casting, steel piston
- Condition: Remanufactured
A sticking caliper can show up as pulling to one side, uneven pad wear or fluid leaking near the caliper. Before you replace the caliper, rule out binding slide pins and a collapsed brake hose, since either can also pull the car to one side.
Fits
As an Audi A4 rear caliper for 2002-2006, it goes on the right side of the car; it also fits the 2002-2005 Audi A4 Quattro. The rear left caliper is a separate part, and both sides of that axle are normally replaced at the same time.
Specifications
Fit and size
- Position: rear right
- Quantity per vehicle: 1
- Piston quantity: 1
- Piston diameter: 1.499 in (38.0746 mm)
- Inlet port size: 0.472 in (11.98408 mm)
- Inlet thread: M12x1.0, inverted flare fitting
- Bleeder thread: M10x1.0
- Mounting hole diameter: 0.325 in (8.25175 mm)
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Casting material: aluminum
- Piston material: steel
- Finish: oil emulsion
- Rust-resistant coating: yes
- Country of origin: Mexico
In the box
One caliper, bracket, hardware kit and instruction sheet, with a bleeder screw and dust boots. This listing is one caliper, and the rear right position takes one. Brake pads, a mounting bolt, abutment clips and a bleeder screw cap are not included, so plan on new mounting bolts rather than reusing the old ones.
Installation notes
- A hardware kit and an instruction sheet come with the caliper; the sheet covers the steps.
- No programming is required.
- Use new brake fluid from a sealed container, of the type the vehicle maker specifies.
Interchange: 8E0615424B
