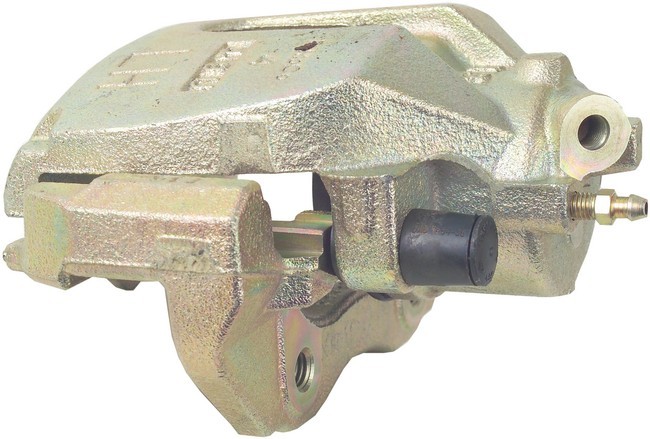

A1 CARDONE 19-B2942 front left brake caliper for the 2004 Mazda 3 uses hydraulic pressure to press the brake pads against the rotor. This remanufactured, unloaded 2004 Mazda 3 caliper is a floating design, so it arrives without brake pads.
- 100% pressure-tested after remanufacturing
- Steel piston that resists cracking and pitting and handles great loads
- Rubber seals replaced with new high-temperature EPDM rubber
- Special rust inhibitor treatment plus a rust-resistant coating
- New bleeder screw for trouble-free bleeding and a positive seal
Quick facts
- Part: A1 CARDONE 19-B2942 brake caliper
- Also called: disc brake caliper
- Fits: 2004 Mazda 3
- Position: Front left
- Material: Cast iron body, steel piston
- Condition: Remanufactured
A pull to one side under braking, brake fluid around the caliper or a low pedal can mean a caliper is failing. Before you replace it, rule out a collapsed brake hose, sticking slide pins or air in the system, since those can produce similar symptoms. Both front calipers are normally replaced together. This listing is one caliper for the front left; the car takes one on each side of the front axle, and the front right is ordered separately.
Fits
This front left caliper is a direct-fit 2004 Mazda 3 caliper replacement.
Specifications
Fit and size
- Position: Front left
- Quantity per position: 1
- Piston diameter: 2.24 in (56.896 mm), one piston
- Mounting hole diameter: 0.472 in (11.98408 mm)
- Mounting hole thread size: M12x1.75
- Inlet port size: 0.394 in (10.00366 mm)
- Inlet thread size: M10x1.0, inverted flare fitting
Build and materials
- Caliper type: Floating, unloaded
- Condition: Remanufactured
- Caliper body material: Cast iron
- Piston material: Steel
- Finish: Oil emulsion, with rust-resistant coating
- Country of origin: Mexico
In the box
One remanufactured caliper, its bracket, a hardware kit and an instruction sheet. An anti-rattle spring and dust boots are also included. Brake pads, mounting bolts, abutment clips and the bleeder screw cap are not included, so plan on new mounting bolts rather than reusing old ones.
Installation notes
- A plastic cap plug protects each brake port thread until installation.
- Silicone grease is used on floating caliper mounting pins.
- Use the brake fluid the vehicle maker specifies, stamped on the master cylinder reservoir lid, from a new sealed container.
- The instruction sheet in the box covers the steps.
Interchange: BPYK3371XA
Frequently Asked Questions
Is this the right front brake caliper for the 2004 Mazda 3?
Yes. A1 CARDONE 19-B2942 is the front left caliper for the 2004 Mazda 3, and the front right side is a separate part.
Does the A1 CARDONE brake caliper come with the bracket and hardware?
Yes. A1 CARDONE 19-B2942 includes the caliper bracket, a hardware kit and an instruction sheet. Brake pads and mounting bolts are not included.
What size piston does this disc brake caliper have?
This front left caliper has one steel piston, 2.24 in (56.896 mm) in diameter, in a floating design.
What grease goes on the mounting pins of an A1 CARDONE caliper?
Silicone grease is used on floating caliper mounting pins. The instruction sheet in the box covers the installation steps.
Are the rubber seals on this remanufactured caliper new?
Yes. The rubber seals are replaced with new high-temperature EPDM rubber, and each unit is 100% pressure-tested.
