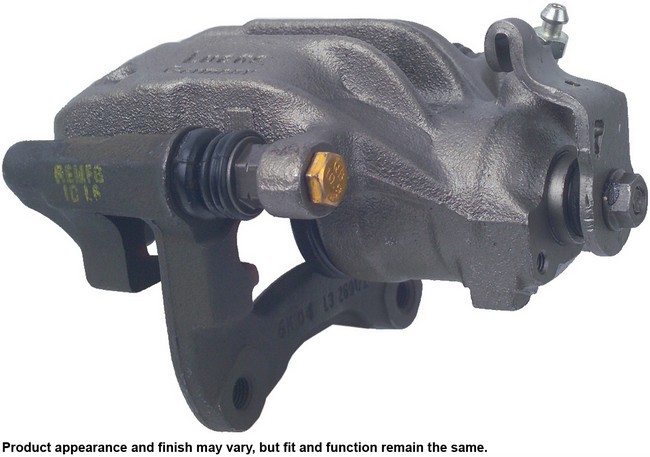

A1 CARDONE 19-B3009 rear left brake caliper for the 1996-1999 Volkswagen Jetta and other vehicles presses the pads against the rotor to slow the wheel. This A1 CARDONE caliper is remanufactured and comes unloaded, so brake pads are not included.
- Remanufactured with brand-new components and 100% pressure-tested
- Steel piston that resists cracking and pitting
- Rubber seals replaced with new high-temperature EPDM rubber
- Special rust inhibitor treatment on the caliper
- New bleeder screw for trouble-free bleeding and a positive seal
- New stainless steel hardware clips and mounting pins where applicable
Quick facts
- Part: A1 CARDONE 19-B3009 brake caliper
- Also called: disc brake caliper
- Fits: 1996-1999 Volkswagen Jetta and other vehicles
- Position: Rear left
- Material: Cast iron body, steel piston
- Condition: Remanufactured
Pulling to one side, brake fluid weeping near the disc brake caliper or a pedal that sits low can mean this caliper is worn or sticking, though a collapsed brake hose or binding slide pins can be behind the same signs, so inspect those before you replace it.
Fits
This listing is one caliper for the rear left. It fits the 1996-1999 Volkswagen Jetta and the 1996-1999 Volkswagen Golf, and each takes one on that side. The rear right is a separate caliper ordered on its own, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: rear left, 1 per application
- Piston: 1, 38.09 mm (1.5 in) diameter
- Inlet port: 10 mm (0.394 in), M10x1.0 thread, inverted flare fitting
- Mounting hole: 10 mm (0.394 in) diameter, M10x1.25 thread
- Bleeder screw thread: M10x1.0
Build and materials
- Type: floating caliper, remanufactured and unloaded
- Caliper casting material: cast iron
- Piston material: steel
- Finish: oil emulsion with a rust-resistant coating
- Casting numbers: 4433/3, 4310/4
- Country of origin: Mexico
In the box
One caliper with its bracket, a hardware kit and an instruction sheet, including a bleeder screw, abutment clips and dust boots. Brake pads, the pad wear sensor, mounting bolts and the bleeder screw cap are not included, so plan on new mounting bolts rather than reusing the old ones.
Installation notes
- Plastic cap plugs on the brake ports protect the thread until installation.
- A silicone grease is used on floating caliper mounting pins.
- Use the brake fluid the vehicle maker specifies, stamped on the master cylinder reservoir lid, from a sealed container.
- The instruction sheet in the box covers the steps.
Interchange: 1H0615423A · 1H0615423D
Frequently Asked Questions
Is this the right caliper for the 1996-1999 Volkswagen Jetta?
Yes. A1 CARDONE 19-B3009 is the rear left caliper for the 1996-1999 Volkswagen Jetta, and each car takes one on that side. The rear right is a separate part.
Is this the Golf brake caliper for the rear left of a 1996-1999 Volkswagen Golf?
Yes. This rear left caliper fits the 1996-1999 Volkswagen Golf, and the Golf takes one per side. The rear right side is ordered separately.
Does this remanufactured caliper come with a bracket and hardware?
Yes. A1 CARDONE 19-B3009 comes with the bracket, a hardware kit and an instruction sheet. Brake pads, mounting bolts and the bleeder screw cap are not included.
What size piston does this floating caliper have?
It has one steel piston, 38.09 mm (1.5 in) in diameter, in a floating design. The caliper casting is cast iron.
What grease goes on the mounting pins of this floating caliper?
A silicone grease is used on floating caliper mounting pins. Use new brake fluid from a sealed container, of the type stamped on the master cylinder reservoir lid.
