Front Windshield Wiper Motor for 1998-2002 Toyota Corolla & More - A1 CARDONE 40-1001

$162.99

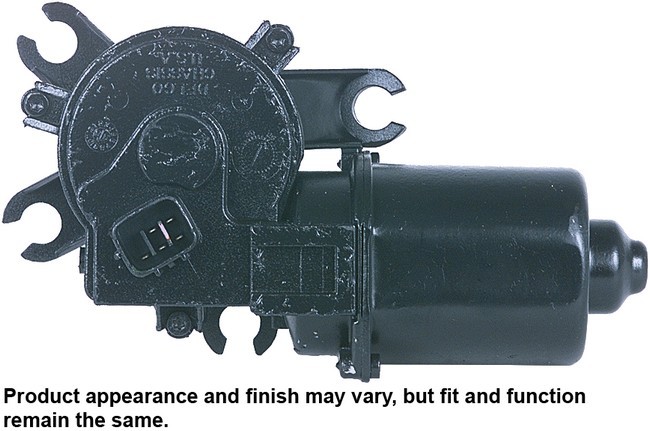

CARDONE Reman Windshield Wiper Motor 40-1001
CARDONE Reman Windshield Wiper Motor 40-1001

Vehicles this part fits
    Part number: 40-1001
    UPC: 082617370516
    Weight: 3.10 LBS
    Item Package Quantity: 1
    $162.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    CARDONE Reman Windshield Wiper Motor P/N:40-1001
    CARDONE Reman Windshield Wiper Motor P/N:40-1001
    $162.99
    $162.99

    A1 CARDONE 40-1001 front windshield wiper motor for the 1998-2002 Toyota Corolla and other vehicles drives the front wipers across the glass. This remanufactured motor is re-engineered, built and tested to match O.E. performance.

    • Armature, field, bearing and parking switch or pulse board are tested or gauged; each function is tested on the vehicle
    • Every motor bearing is re-impregnated or replaced as needed
    • Lubricant on the output gear gives load capacity and long life
    • Weak solder points are 100% reflowed to extend life expectancy
    • Motor magnets are 100% recharged for performance and reliability

    Quick facts

    • Part: A1 CARDONE 40-1001 windshield wiper motor
    • Fits: 1998-2002 Toyota Corolla and other vehicles
    • Position: Front
    • Material: Cast Aluminum
    • Condition: Remanufactured

    A failing wiper motor can show up as wipers that run slowly, stall or do not move at all. Before you replace the motor, rule out the washer pump, the wiring harness ground and the wiper switch, since a defective washer pump can keep some motors from running.

    Fits

    It is a wiper motor replacement for the 1998-2002 Toyota Corolla, and it also fits the 1998-2002 Chevrolet Prizm and the 1993-1997 Geo Prizm.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 1
    • Mounting type: Grommet
    • Mounting holes: 4
    • Terminals: 5 male blade terminals
    • Wiper speeds: 2

    Build and materials

    • Material: Cast aluminum
    • Type: Electric motor
    • Condition: Remanufactured
    • Country of origin: Mexico

    In the box

    One wiper motor and one instruction sheet. This listing holds one motor, and each vehicle takes one. The wiring harness and washer pump are not included.

    Interchange: 8511002051

    This part cross-references / interchanges with the following part numbers:

    8511002051

    Frequently Asked Questions

    Is this wiper motor right for the 1998-2002 Toyota Corolla?

    Yes. A1 CARDONE 40-1001 is a front wiper motor that fits the 1998-2002 Toyota Corolla, and each vehicle takes one.

    Is the A1 CARDONE windshield wiper motor new or remanufactured?

    It is remanufactured. On A1 CARDONE 40-1001, every motor bearing is re-impregnated or replaced as needed, and the motor magnets are 100% recharged.

    Does the 40-1001 wiper motor come with the wiring harness or washer pump?

    No. This listing is one wiper motor with an instruction sheet. The wiring harness and washer pump are not included.

    How many terminals does this wiper motor have and how does it mount?

    This wiper motor has 5 male blade terminals and 2 wiper speeds. It mounts by grommet and has 4 mounting holes.

    My wipers keep stopping in the middle of the windshield. Could the motor be the reason?

    It can be, because the parking switch or pulse board is part of the motor. The wiper arm or linkage can cause it too, and a shop can bench test the motor.
