Timing Chain for 1990-1993 Chevrolet C1500 & More - Cloyes High Performance 9-134-5

Be the first to review this product
$109.99
MPN: 9-134-5
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Cloyes High Performance Engine Timing Chain P/N:9-134-5
Cloyes High Performance Engine Timing Chain P/N:9-134-5
$109.99

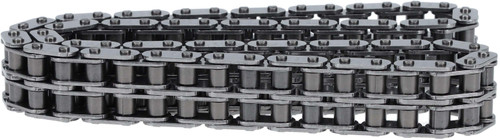

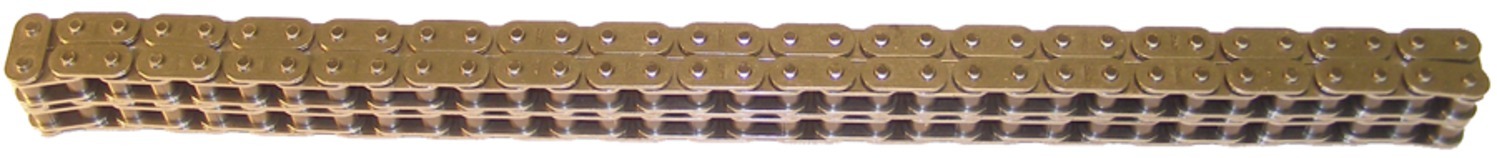

Keep the crankshaft and camshaft spinning in precise sync with the CLOYES timing chain 9-134-5 (also cataloged as 91345), a high-performance True Roller replacement. A timing chain synchronizes the rotation of the crankshaft and camshaft(s) so the engine's valve events open and close at the correct moment for each cylinder, and this one installs at the front of the engine. It fits many vehicles, among them the 1990-1993 Chevrolet C1500 7.4L, 1975-1978 Ford F-150 7.5L and 1973-1978 Ford F-250 7.5L; see the Buyer's Guide tab for the full list.

  • Double roller chain: 3/8" (0.38 in) pitch with a 0.250" roller diameter, 66 links across two rows, in steel construction.
  • Heat-treated links: heat treated and processed to maximize ultimate breaking strength while remaining ductile for toughness.
  • Prestressed: prestressed to increase fatigue life, with precision pitch control engineered for proper chain-to-sprocket tooth fitment.
  • Timing mark: includes a single timing mark to aid alignment during installation.

Measuring 12.25 in long and 0.93 in wide, it's made in Germany. Cloyes recommends replacing the chain tensioner(s), sprocket(s), and guide(s) at the same time, as these components play a vital role in system stability and accurate timing. Reduced-length chains (0.005" and 0.010") are available by adding -5 or -10 to the end of this part number.

Frequently Asked Questions

What does this CLOYES engine timing chain do?

It synchronizes the rotation of the crankshaft and camshaft(s), helping keep the engine's valve events correctly timed for each cylinder.

Is this the right 1975-1978 Ford F-150 timing chain for the 7.5L?

It's listed for the 1975-1978 Ford F-150 with the V8-7.5L engine. Check the Buyer's Guide tab to confirm your exact year and engine before ordering.

What type of chain is the 9-134-5?

It's a double roller True Roller chain with a 3/8" (0.38 in) pitch, 0.250" roller diameter, and 66 steel links across two rows.

Should I replace other timing components with the chain?

Cloyes recommends also replacing the chain tensioner(s), sprocket(s), and guide(s) when the chain is replaced, since they play a vital role in system stability and accurate timing.

Are shorter versions of this chain available?

Yes. 0.005" and 0.010" reduced-length chains can be ordered by adding -5 or -10 to the end of this part number.
