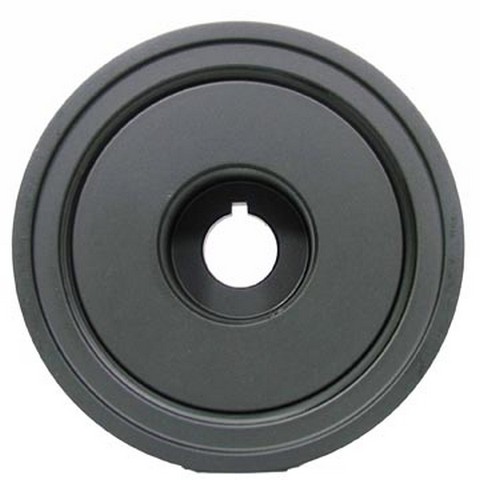

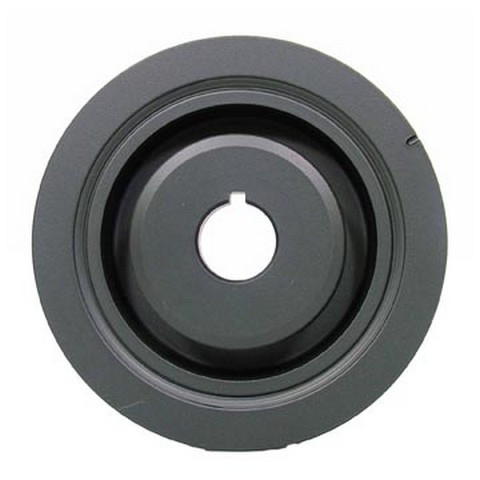

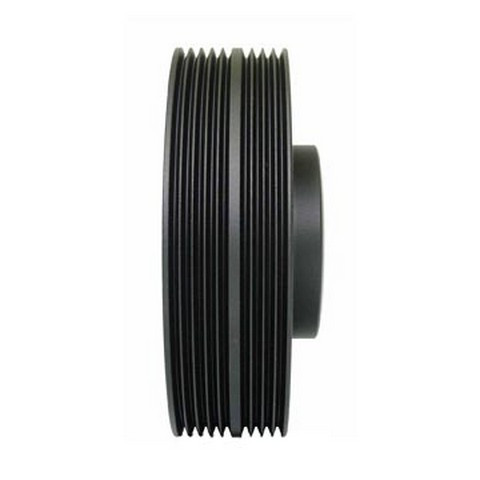

Dayco PB1165N harmonic balancer for the 1998-2010 Subaru Forester and other vehicles damps crankshaft vibration. The Dayco harmonic balancer mounts on the crankshaft and turns the serpentine belt.
Visible cracks, a loose-looking outer ring, engine vibration or belt noise can mean the engine harmonic balancer is worn. A tired serpentine belt or tensioner can produce some of the same symptoms, so track down the actual cause before you buy.
This harmonic balancer is a direct-fit replacement for the 1998-2010 Subaru Forester, the 1998-2014 Subaru Impreza and the 2000-2009 Subaru Outback. The 1998-2010 Subaru Forester takes one. If your car isn't named here, look up its year and engine on the Buyer's Guide tab.
Fit and size
Build and materials
One harmonic balancer. Hardware, a woodruff key and installation instructions are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: 594-166 · DA-250
102143 · 6005325
This part cross-references / interchanges with the following part numbers:
Is this the right harmonic balancer for a 1998-2014 Subaru Impreza?
Yes. Dayco PB1165N is listed for the 1998-2014 Subaru Impreza, and each car takes one.
Will this harmonic balancer fit a 1998-2010 Subaru Forester?
Yes. Dayco PB1165N is listed for the 1998-2010 Subaru Forester, one per vehicle.
Does this harmonic balancer come with bolts or a woodruff key?
No. Hardware, a woodruff key and installation instructions are not included with this balancer, so plan on new bolts.
What are the crank bore and outside diameter of this balancer?
The crank bore is 24.01 mm (0.946 in) and the overall outside diameter is 133.00 mm (5.237 in). Overall width is 48.80 mm (1.922 in).
Does this balancer have timing marks, and is the outer ring cast iron?
Yes, it has timing marks, and the outer ring is cast iron. The balance is neutral, with no counterweight.
