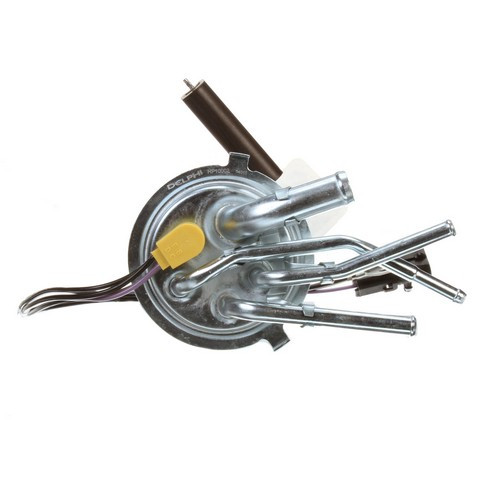

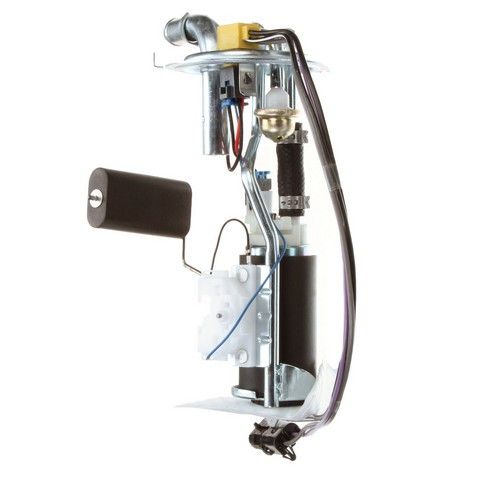

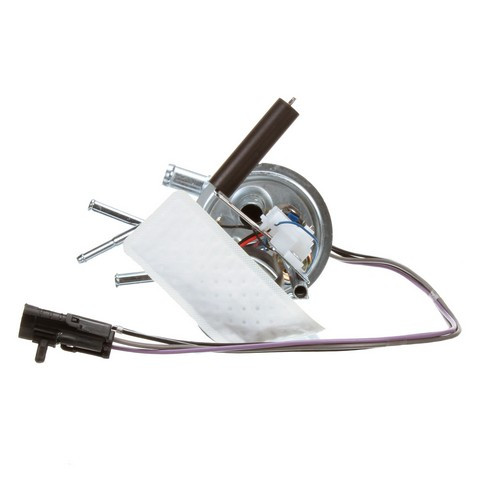

Delphi HP10002 fuel pump and sender assembly for the 1987-1993 Chevrolet LLV 4-cylinder 2.5L and other vehicles moves fuel from the tank to the engine. The float arm reports fuel level to the gauge, and this Delphi fuel pump is built to Delphi's OE standards.
- Pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes in the hanger are routed so they never contact the tank, which removes noise and vibration during vehicle operation
- Empty float height and float retention are set to specification for a correct gas gauge reading
- Part is validated and tested before sale
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi HP10002 fuel pump and sender assembly
- Fits: 1987-1993 Chevrolet LLV 4-cylinder 2.5L and other vehicles
- Condition: New
A failing assembly can show up as hard starting, stalling or a fuel gauge that reads wrong. Before you replace this assembly, rule out a blown fuse, a faulty relay and a clogged fuel filter, since those can also leave the engine hard to start.
Fits
This assembly fits the 1987-1993 Chevrolet LLV 4-cylinder 2.5L, the 1985-1987 Chevrolet S10 Blazer 4-cylinder 2.5L and the 1986-1987 S10 Blazer V6 2.8L, and the 1985-1987 GMC S15 Jimmy 4-cylinder 2.5L and the 1986-1987 S15 Jimmy V6 2.8L.
Specifications
- Type: fuel pump hanger assembly with float arm
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump and sender assembly with float arm, seal, lock ring and an instruction sheet. This listing holds one assembly, and a vehicle needs one.
Installation notes
- An instruction sheet comes with the assembly for the installation steps.
- Check and clean the fuel tank before installing.
Interchange: 692-041
25092710 · 25092711 · FLS1064 · 4011217 · 4017085 · E3902 · DHP10002 · 19179423 · SP04A1H
This part cross-references / interchanges with the following part numbers:
25092710, 25092711, FLS1064, 4011217, 4017085, E3902, DHP10002, 692-041, 19179423, SP04A1H
Frequently Asked Questions
Does Delphi HP10002 work as an S10 Blazer fuel pump for the 1986-1987 Chevrolet S10 Blazer V6 2.8L?
Yes. Delphi HP10002 fits the 1986-1987 Chevrolet S10 Blazer V6 2.8L, and the 1985-1987 S10 Blazer 4-cylinder 2.5L as well.
Does this Delphi fuel pump assembly come with a seal and lock ring?
Yes. Delphi HP10002 comes with the float arm, seal, lock ring and an instruction sheet.
How are the metal tubes routed on this Delphi pump?
They run clear of the tank at every point, so there is no tube contact to cause noise or vibration while the vehicle is operating.
Does the float on this Delphi fuel pump replacement match OE specifications?
Yes. Its empty float height and float retention match OE specifications, which is intended to give a correct gas gauge reading.
What should I do with the fuel tank when installing this fuel pump and sender assembly?
Check and clean the fuel tank before installing. The instruction sheet in the box covers the installation steps.
