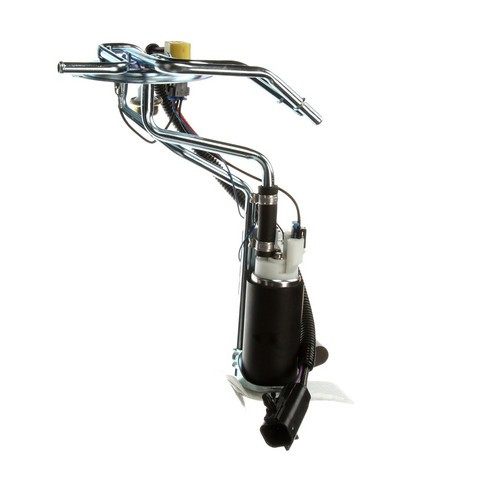

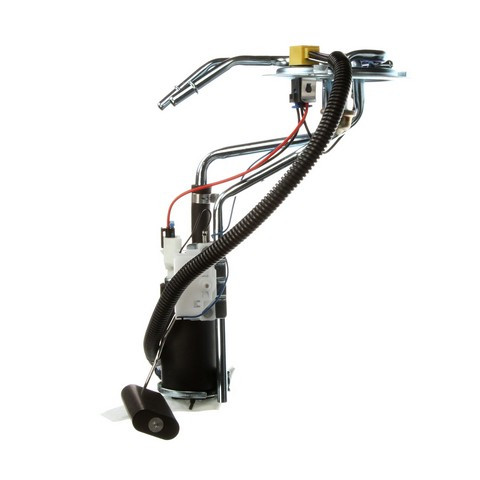

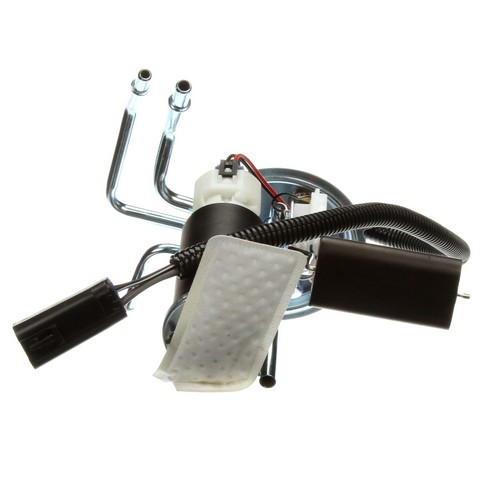

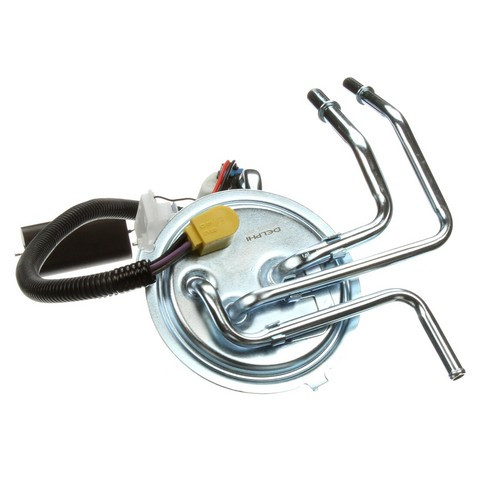

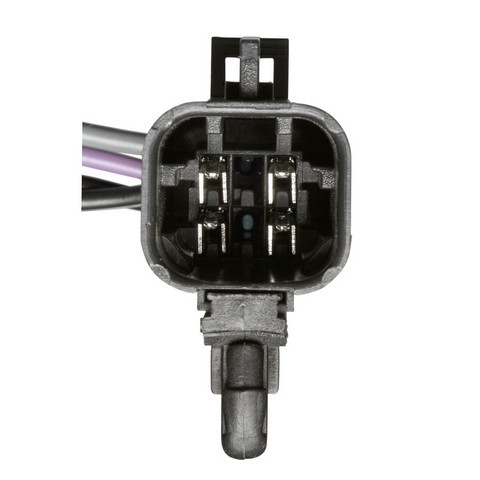

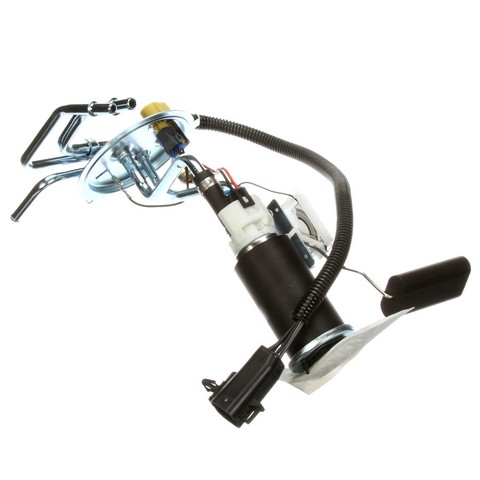

Delphi HP10009 fuel pump hanger for the 1994-1995 Oldsmobile Cutlass Supreme V6 3.4L, the 1994-1997 Cutlass Supreme V6 3.1L and other vehicles supports the fuel pump inside the tank and carries the float arm that reads the fuel level.
- Metal tubes are routed so they never touch the tank, which removes noise and vibration while driving
- Empty float height and float retention are set for a correct gas gauge reading
- Design and durability intended to keep failure rates low
Quick facts
- Part: Delphi HP10009 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: the 1994-1995 Oldsmobile Cutlass Supreme V6 3.4L, the 1994-1997 Cutlass Supreme V6 3.1L and other vehicles
A gauge that reads wrong, a whine from the tank or a hard start can mean a worn fuel pump hanger assembly. A weak pump, a clogged filter or a dirty tank can look the same, so have fuel pressure tested at a shop first; that test needs the engine running and a fuel line opened. The tank takes one hanger.
Fits
The vehicles it fits include the 1994-1995 Chevrolet Lumina V6 3.4L, the 1994-1996 Lumina V6 3.1L, the 1993-1996 Buick Regal V6 3.8L and the 1994-1996 Regal V6 3.1L. If your car is not named here, open the "Vehicles it fits" section and check your exact model and engine.
Specifications
- Quantity per vehicle: 1
- Float arm: included
In the box

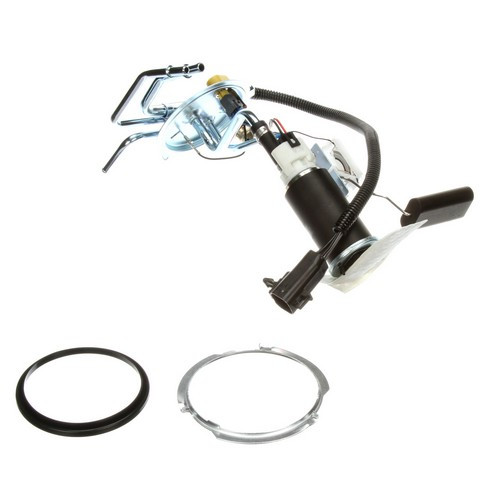

One fuel pump hanger with float arm, a seal, a lock ring and an instruction sheet.
Installation notes
- An instruction sheet comes with the hanger for the steps.
- Check and clean the fuel tank during the job.
Interchange: 25029738 · 25029739 · FLS1022 · 4011082 · 4011208 · 4017121 · E3265 · DHP10009 · P77383H · 19111403 · SP09D1H
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
25029738, 25029739, FLS1022, 4011082, 4011208, 4017121, E3265, DHP10009, P77383H, 19111403, SP09D1H
Frequently Asked Questions
Will the Delphi HP10009 fit a 1994-1995 Chevrolet Lumina V6 3.4L?
Yes. Delphi HP10009 fits the 1994-1995 Chevrolet Lumina V6 3.4L and the 1994-1996 Lumina V6 3.1L, and each tank takes one hanger.
Does the HP10009 hanger come with a float arm and lock ring?
Yes. Delphi HP10009 comes with the float arm, a seal, a lock ring and an instruction sheet.
How do the metal tubes on this Delphi fuel pump hanger avoid tank noise?
The metal tubes are routed so they do not touch the tank at any point. That removes noise and vibration while the vehicle is running.
Can a wrong fuel gauge reading point to a bad fuel pump hanger?
It can be one sign, but other fuel system faults can look similar. On this hanger, the empty float height and float retention are set for a correct gauge reading.
Does the tank need cleaning when installing this hanger?
Yes. Check and clean the fuel tank during the job, and follow the instruction sheet in the package for the steps.
