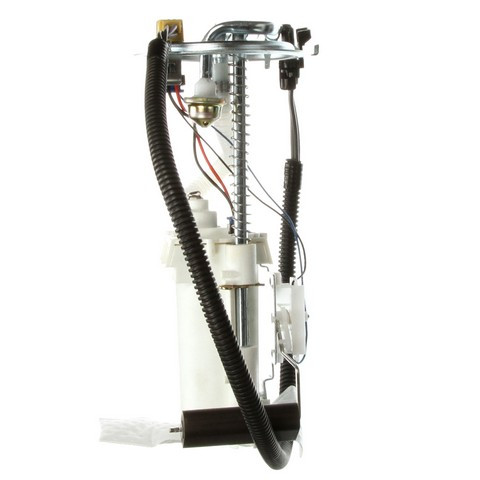

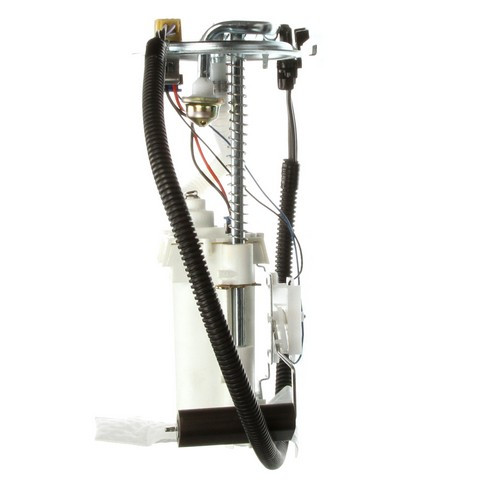

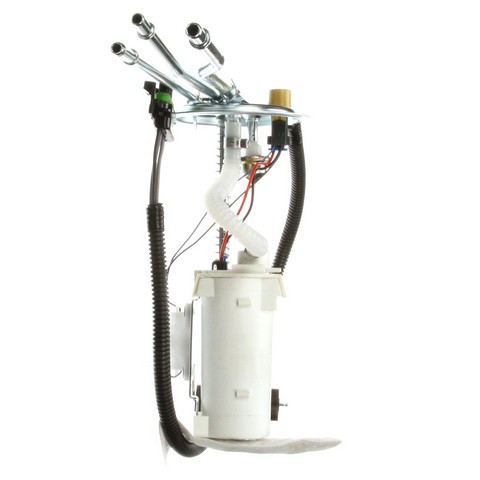

Delphi HP10024 fuel pump hanger for the 1994-1996 Cadillac Fleetwood V8 5.7L mounts in the fuel tank with a float arm that sets the gas gauge reading. A fuel pump hanger assembly like this one replaces a hanger that has worn out or developed a float problem.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they do not contact the tank at any point, which removes noise and vibration during vehicle operation
- Float arm with float retention for a correct gas gauge reading
- Design and durability aimed at lower failure rates
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi HP10024 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 1994-1996 Cadillac Fleetwood V8 5.7L
- Condition: New
A gas gauge that reads wrong, noise from the tank or poor fuel delivery can point to a worn hanger, but a blown fuse, a relay or dirty fuel can look the same, so rule those out first. When the hanger comes out, check the fuel tank and clean it before the new one goes in.
Fits
This hanger fits the 1994-1996 Cadillac Fleetwood V8 5.7L, which takes one, mounted in the fuel tank. Its empty float height and float retention match OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V8-5.7L
Build and materials
- Condition: New
- Type: hanger assembly with float arm
In the box

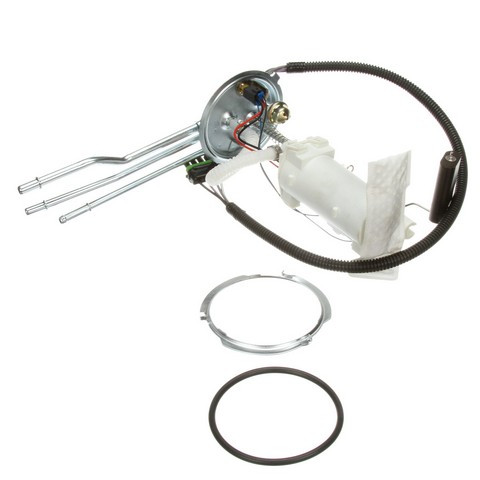

One fuel pump hanger with float arm, seal, lock ring and instruction sheet.
Interchange: 951-5002 · 951-5016
25028958 · 25028959 · EP376 · FLS1021 · 4011206 · 4017175 · E3210 · E3270 · DHP10024 · 69225 · P74037 · P74074 · P77390H · AFS0209P · RE0202P · RE0209P · 19111402 · 25117454 · 25164429 · E16008 · SP1151 · SP128C1H · USEP3210N
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
25028958, 25028959, EP376, FLS1021, 4011206, 4017175, E3210, E3270, DHP10024, 69225, P74037, P74074, P77390H, 951-5002, 951-5016, AFS0209P, RE0202P, RE0209P, 19111402, 25117454, 25164429, E16008, SP1151, SP128C1H, USEP3210N
Frequently Asked Questions
Does the Delphi HP10024 fuel pump hanger fit the 1994-1996 Cadillac Fleetwood V8 5.7L?
Yes. Delphi HP10024 is listed for the 1994-1996 Cadillac Fleetwood V8 5.7L, and that car takes one hanger.
Does the Delphi HP10024 come with a float arm and lock ring?
Yes. The Delphi HP10024 comes with the float arm, a seal, a lock ring and an instruction sheet.
Is the float on this fuel pump hanger matched to OE specs?
Yes. The empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
What signs can a worn fuel pump hanger show?
A gas gauge that reads wrong, noise from the tank or weak fuel delivery can all be signs. Pressure tests on the fuel system are best left to a shop.
Can I cross-reference this hanger by number 25028958?
Yes. 25028958 is one of the numbers on the Interchange line for Delphi HP10024, along with the other cross-reference numbers listed there.
