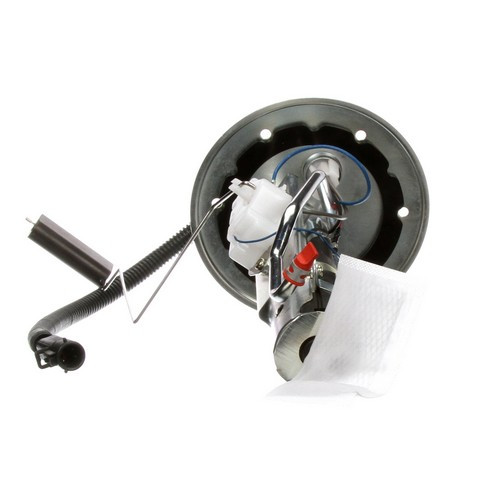

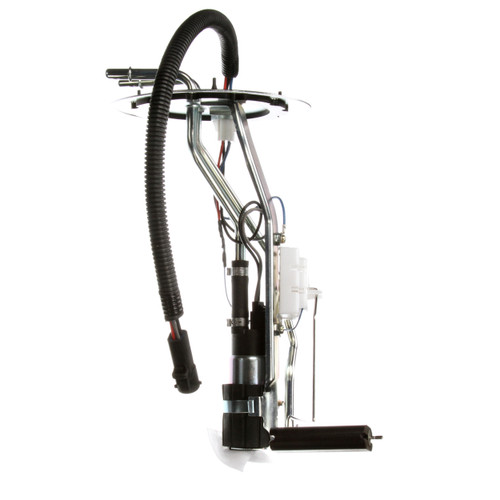

Delphi HP10247 fuel pump and sender assembly for the 1995-2000 Ford Explorer V6 4.0L holds the Delphi fuel pump and the float arm for the gas gauge. It is also sold as a fuel pump hanger assembly, and the pump is built to Delphi's OE standards.
- Pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes in the hanger are routed so they never touch the tank, which prevents noise and vibration during operation
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Part is validated and tested
Quick facts
- Part: Delphi HP10247 fuel pump and sender assembly
- Fits: 1995-2000 Ford Explorer V6 4.0L
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the pump or float arm is failing. A clogged fuel filter, a weak relay, a wiring fault or a dirty tank can be behind the same signs, so find the cause before buying a new assembly.
Fits
This fuel pump and sender assembly fits the 1995-2000 Ford Explorer V6 4.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V6-4.0L
Build and materials
- Float arm: included
- Condition: New
In the box

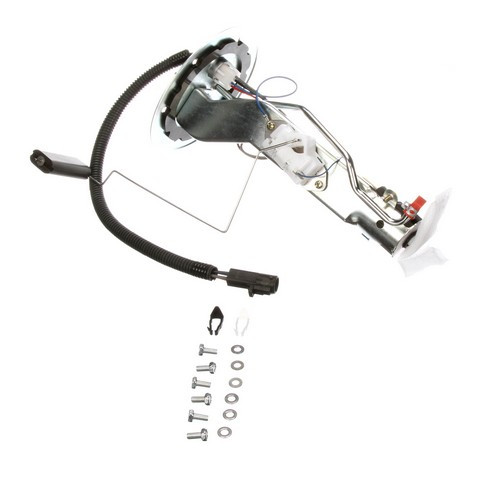

One fuel pump and sender assembly with float arm, six bolts, six washers, two retainer clips and an instruction sheet. This listing holds one assembly, and the 1995-2000 Ford Explorer V6 4.0L takes one.
Installation notes
- Check and clean the fuel tank before installing.
- An instruction sheet comes with the assembly for the installation steps.
Interchange: 953-4062 · F57Z 9H307-DA
4011049 · 4011164 · E2190S · DHP10247 · P76552H · P76552S · P77409H · P77410H · P77412H · C0052H · A30248 · SP2181H · SP6039H · SP6040H · USEP2181S · USEP2190S
This part cross-references / interchanges with the following part numbers:
4011049, 4011164, E2190S, DHP10247, P76552H, P76552S, P77409H, P77410H, P77412H, 953-4062, F57Z 9H307-DA, C0052H, A30248, SP2181H, SP6039H, SP6040H, USEP2181S, USEP2190S
Frequently Asked Questions
Does Delphi HP10247 work as a fuel pump for the 1995-2000 Ford Explorer V6 4.0L?
Yes. Delphi HP10247 fits the 1995-2000 Ford Explorer V6 4.0L, and that vehicle takes one assembly.
What hardware comes with this Delphi fuel pump assembly?
The Delphi HP10247 comes with the float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Is the float on this fuel pump and sender assembly set for the gas gauge?
Yes. Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Which symptoms can point to a failing fuel pump and sender assembly?
Hard starting, stalling and an inaccurate fuel gauge can all be signs. A shop can test fuel pressure to confirm, since fuel lines should not be opened casually.
Should I clean the tank before installing the HP10247 assembly?
Yes. Check and clean the fuel tank before installing the new assembly. The instruction sheet in the box covers the installation steps.
