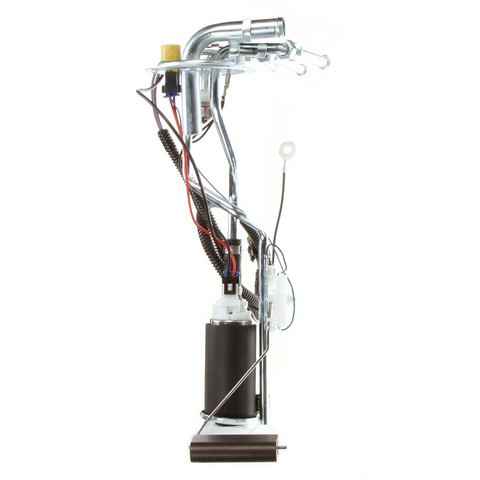

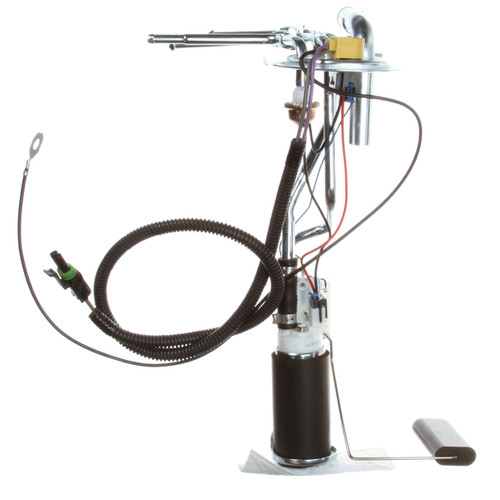

Delphi HP10026 fuel pump and sender assembly for the 1987 Chevrolet Blazer V8 5.0L, the 1987-1991 Blazer V8 5.7L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump sits on a hanger with a float arm that sends the tank level to the gas gauge.
- Pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes in the hanger are routed so they never touch the tank, which removes noise and vibration during operation
- Empty float height and float retention are set for correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
Quick facts
- Part: Delphi HP10026 fuel pump and sender assembly
- Also called: fuel pump hanger assembly
- Fits: 1987 Chevrolet Blazer V8 5.0L, the 1987-1991 Blazer V8 5.7L and other vehicles
- Condition: New
A whining pump, hard starting, stalling or a gas gauge that reads wrong can mean the pump or sender is wearing out. A blown fuse or a loose connector can cause some of the same signs, so look at both with the engine off before you replace the assembly.
Fits
The vehicles it fits include the 1987 GMC Jimmy V8 5.0L, the 1987-1991 Jimmy V8 5.7L, the 1987 GMC R1500 Suburban V8 5.0L and the 1987-1991 R1500 Suburban V8 5.7L. If your vehicle is a different model or has another engine, open the "Vehicles it fits" section and check your exact model and engine there.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump hanger assembly with float arm
- Condition: New
In the box

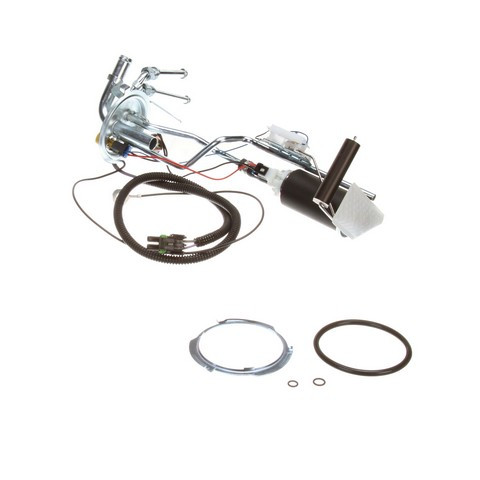

One fuel pump hanger assembly with float arm, seal, lock ring, two O-rings and an instruction sheet. The listing is a single assembly, and the vehicle needs just one.
Installation notes
- An instruction sheet comes with the assembly for the steps.
- Check the fuel tank and clean it during installation.
Interchange: 692-033
25094539 · 25094540 · 4010007 · 4017060 · 4017186 · 4017187 · 4017188 · E3633S · E3634S · DHP10026 · 25090855 · A30140 · FG12K · SP12L1H · SP6093H · USEP3633S
This part cross-references / interchanges with the following part numbers:
25094539, 25094540, 4010007, 4017060, 4017186, 4017187, 4017188, E3633S, E3634S, DHP10026, 692-033, 25090855, A30140, FG12K, SP12L1H, SP6093H, USEP3633S
Frequently Asked Questions
Is this Chevy Blazer fuel pump right for the 1987 Chevrolet Blazer V8 5.0L?
Yes. Delphi HP10026 is listed for the 1987 Chevrolet Blazer V8 5.0L, and the vehicle takes one assembly.
Does this work as a Chevy Blazer fuel pump replacement on the 1987-1991 Blazer V8 5.7L?
Yes, HP10026 is listed for the 1987-1991 Blazer V8 5.7L; for another model or engine, open the "Vehicles it fits" section and check there.
What comes with the Delphi fuel pump assembly HP10026?
Delphi HP10026 includes the hanger assembly with float arm, a seal, a lock ring, two O-rings and an instruction sheet.
How does the float arm on this hanger affect the gas gauge reading?
Empty float height and float retention are set for correct gas gauge reading. The pump also draws lower amperage, so it puts less load on the electrical system.
Should the tank be cleaned during a Delphi fuel pump replacement?
Yes, check the fuel tank and clean it while the hanger is out; the instruction sheet that comes with the assembly covers the installation steps.
